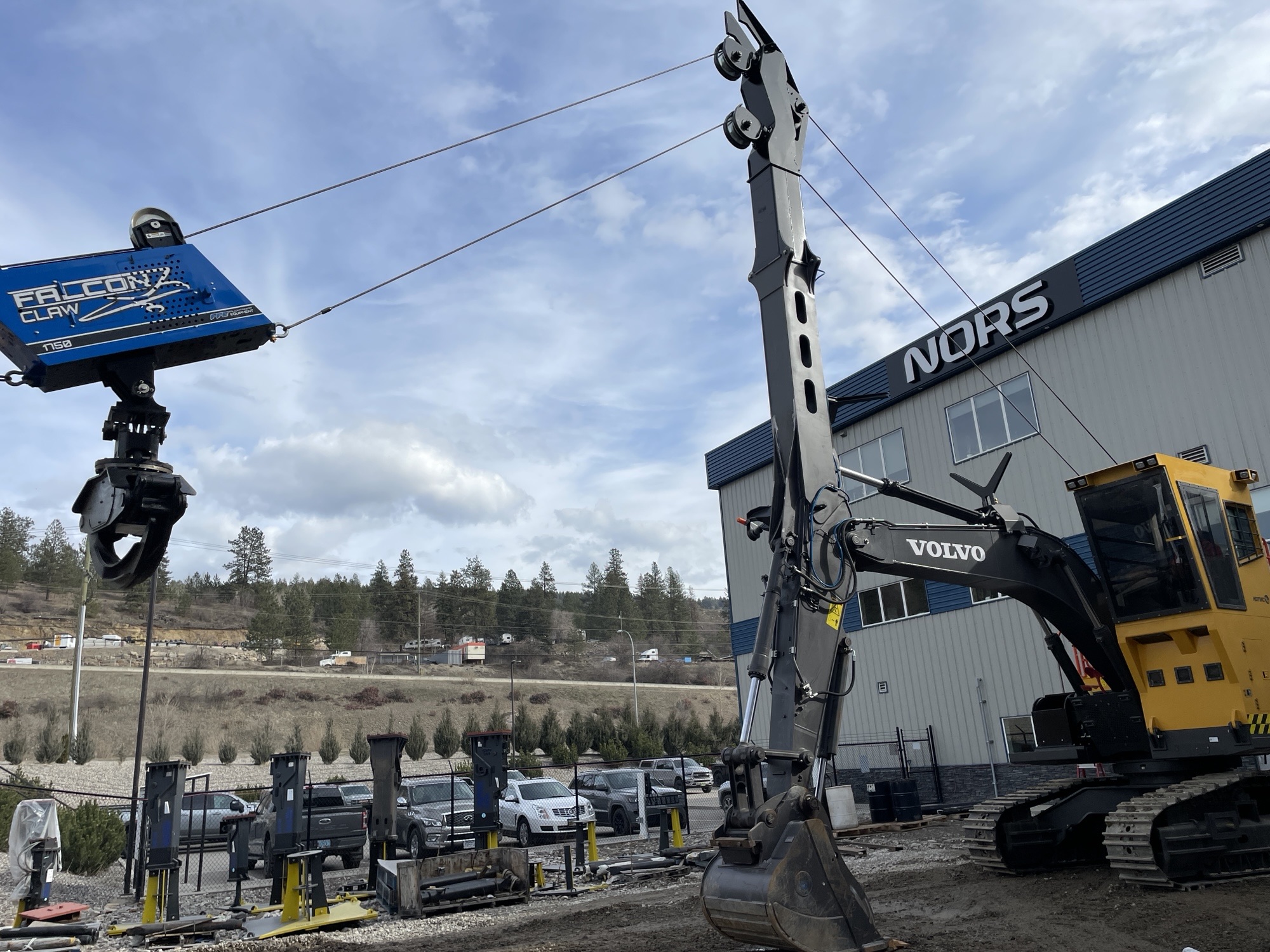

Falcon Hydraulic Yarder RS

Info
Specs

Reduce downtime. Improve cycle times.

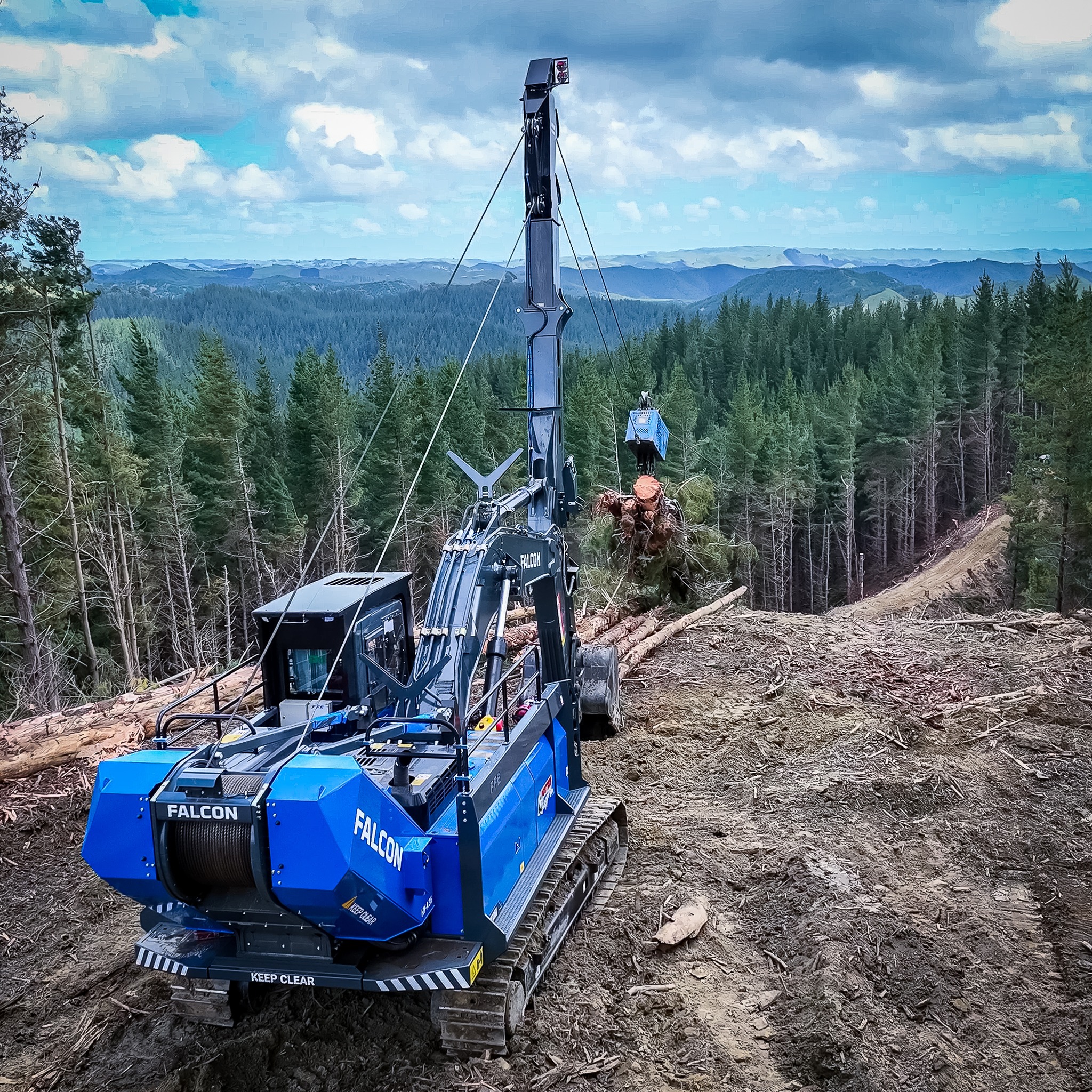

The Falcon Hydraulic Yarder turns tight, difficult terrain into manageable, profitable harvest blocks.

Developed to be used with motorized grapple carriages, the Falcon Hydraulic Yarder eliminates the use of time-consuming guy ropes, reliance of constructing large infrastructure and landings while enabling harvest crews to operate in an agile, adaptable extraction sites and processes.

Fast drum speeds communicated by a live data feed ensure that cycle times are quick and extraction of wood is precise.

The Falcon Hydraulic Yarder gives you the tools you need for demanding settings that require the best of both experience and equipment.

Integrated operator controls

The Falcon Hydraulic Yarder control system is a simple, intuitive joystick based configuration integrated with a high quality camera and in-cab monitor system. The integrated joystick gives more control and autonomy to the operator for quicker turn around times.

Going the extra mile

Extra length of cable where it matters most, decreasing line shifts and increasing options when harvest planning.

Move in hours – not days

With a collapsible spar, no guy ropes and over 800m of strawline, adjusting lines within block or packing down is quick, ensuring more time for productive pulling.

Transport and logistic friendly

The Falcon Hydraulic yarder balances the need for lift with the convenience of quicker transportation with a 11m collapsible spar. This reduces regulatory costs while still remaining safe and within best-practice.

Eyes where you need them

Haul at ease with multiple high-quality camera views providing wide-range vision via two drum cameras.

Performance over infrastructure

The Falcon Hydraulic Yarder has high performance in low infrastructure blocks, saving time, environmental impacts and costs relating to infrastructure. This help provide more value to your contracts and forest managers.

In-cab experience like no other

Simple yet intuitive in cab operator functions reducing fatigue, operator training providing agility of roles within your crew.

Larger, non-restrictive payloads

A 10T safe-working load capability with 550m of skyline rope to accommodate for a variety of settings

Base Machine *Dependent on base machine
Minimum weight	35T
Tower height*	11 metres
Effective yarding distance	420 metres
Minimum pressure & flow requirement	4800 PSI (550 L/pm)
Minimum power requirement	200kw / 268hp
Winch System
Winch unit	2-drum hydraulically inter-locked winch system
Braking system	Multi-plate wet brake
Gearbox system	Planetary gearboxes
In-Cab
Operation Interface	12” touch screen PLC
Camera system	Dual drum cameras
Electrical componentry	Tension pin , multiple pressure and temperature inputs, events and alarms, IO page
Protection safety	FOPS, ROPS, OPS
Operator controls	Integrated left and right hand Suregrip joystick controls
Winch modes	Maintenance mode – for ease of rope replacement and splicing Set-up mode – for preparation of operation Work mode
Transportation *Dependent on base machine
Transport length*	12.3 metres
Transport height*	3.74 metres
Transport length*	3.4 metres
Haulback
Skyline diameter size	3/4” (19mm) swaged wire rope
Skyline length	900m
Skyline maximum tension top layer	8T
Skyline maximum tension bottom layer	5T
Payload	3T
Mainline
Mainline diameter size	3/4” (19mm) swaged wire rope
Mainline length	450m
Mainline line speed	Up to 8 m/sec
Mainline pulling power top layer	4T @ 4 m/sec
Mainline pulling power bottom layer	6T @ 3.6m/sec
Strawline
Strawline diameter size	9mm
Strawline length	1000m
Strawline line speed	3m/sec
Miscellaneous
Standard extras	Bucket cylinder protection Tail hold rope block and connections Catwalks
Optional extras	Forestry purpose-built cab Handrails Fire suppression High and wide base
