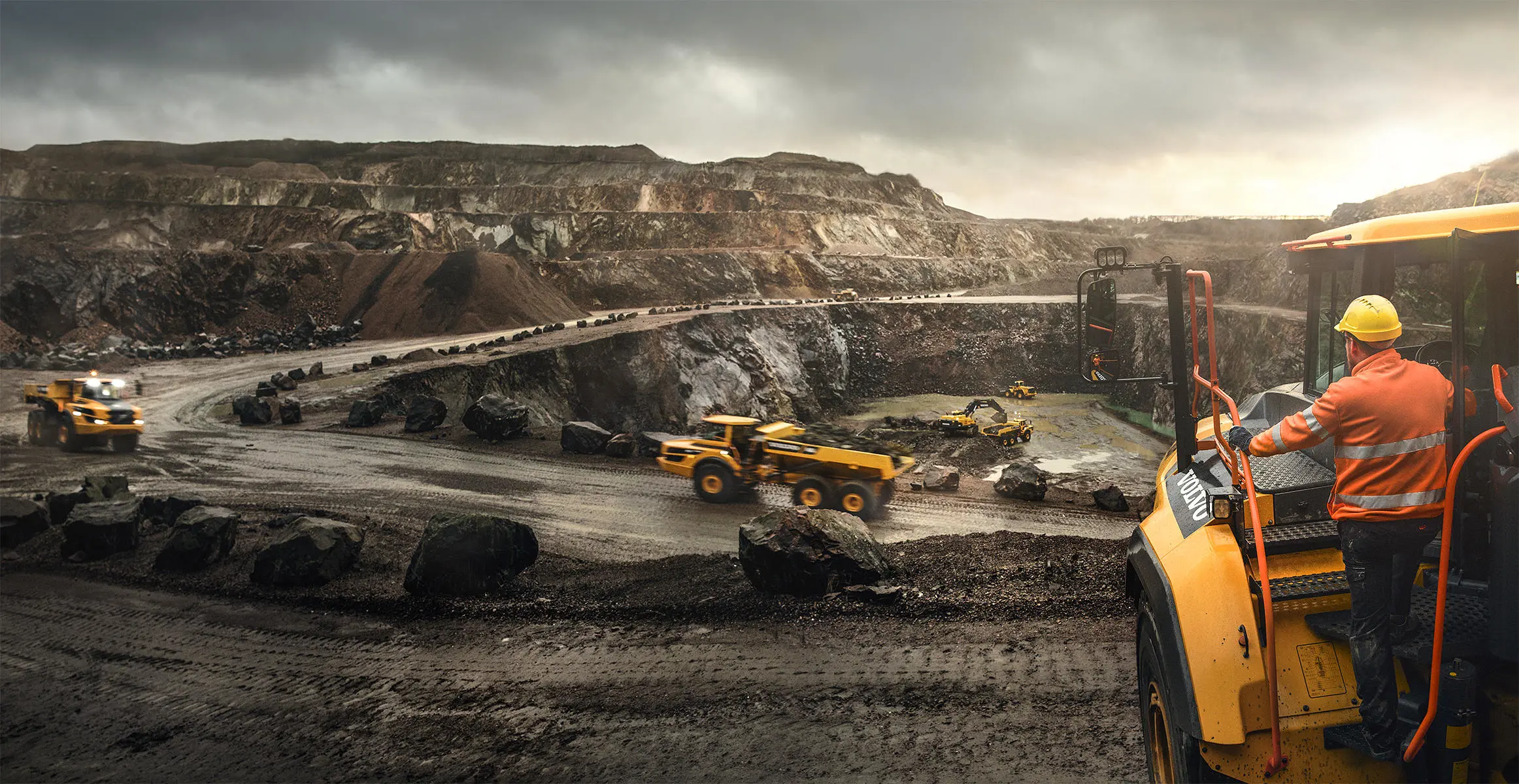

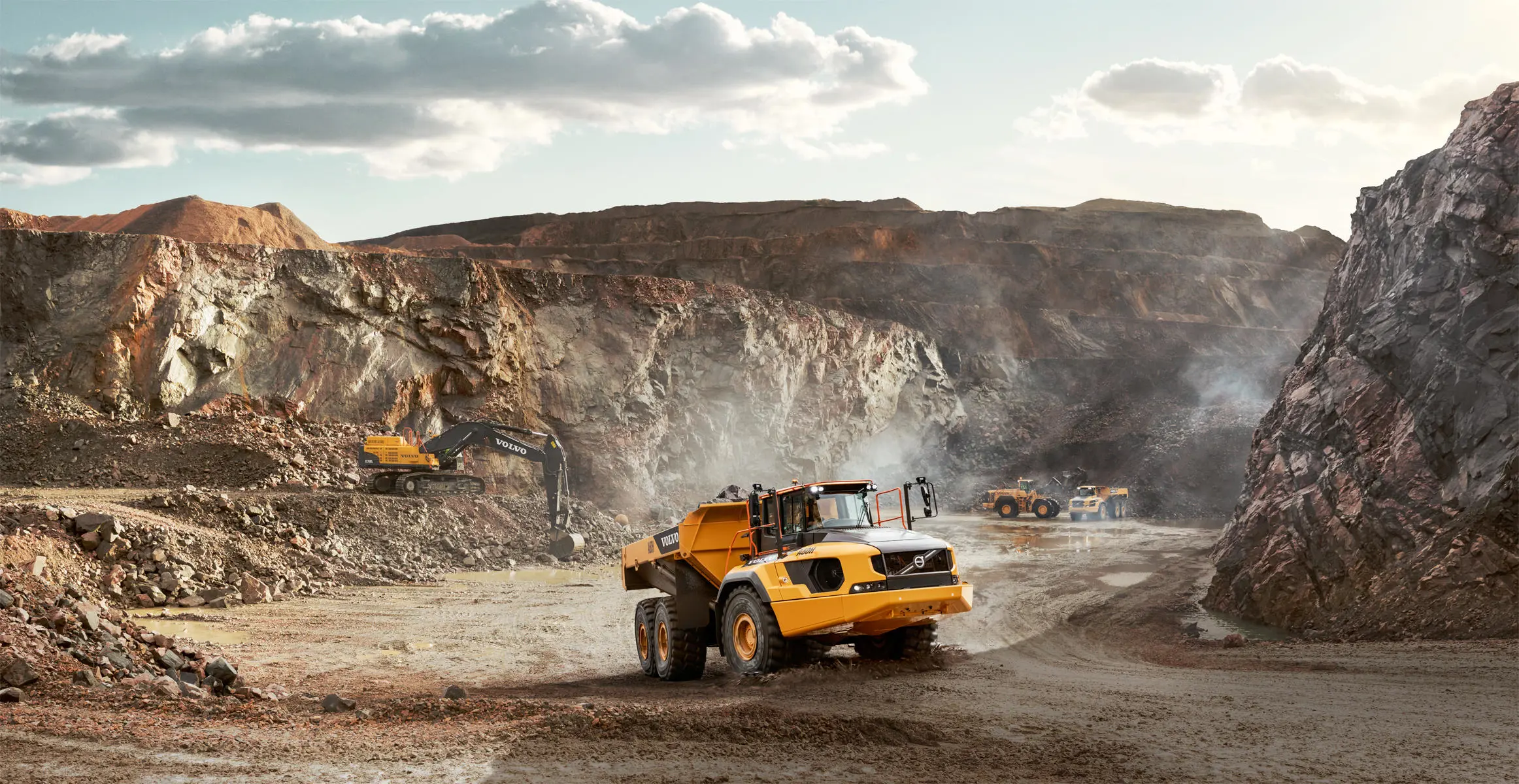

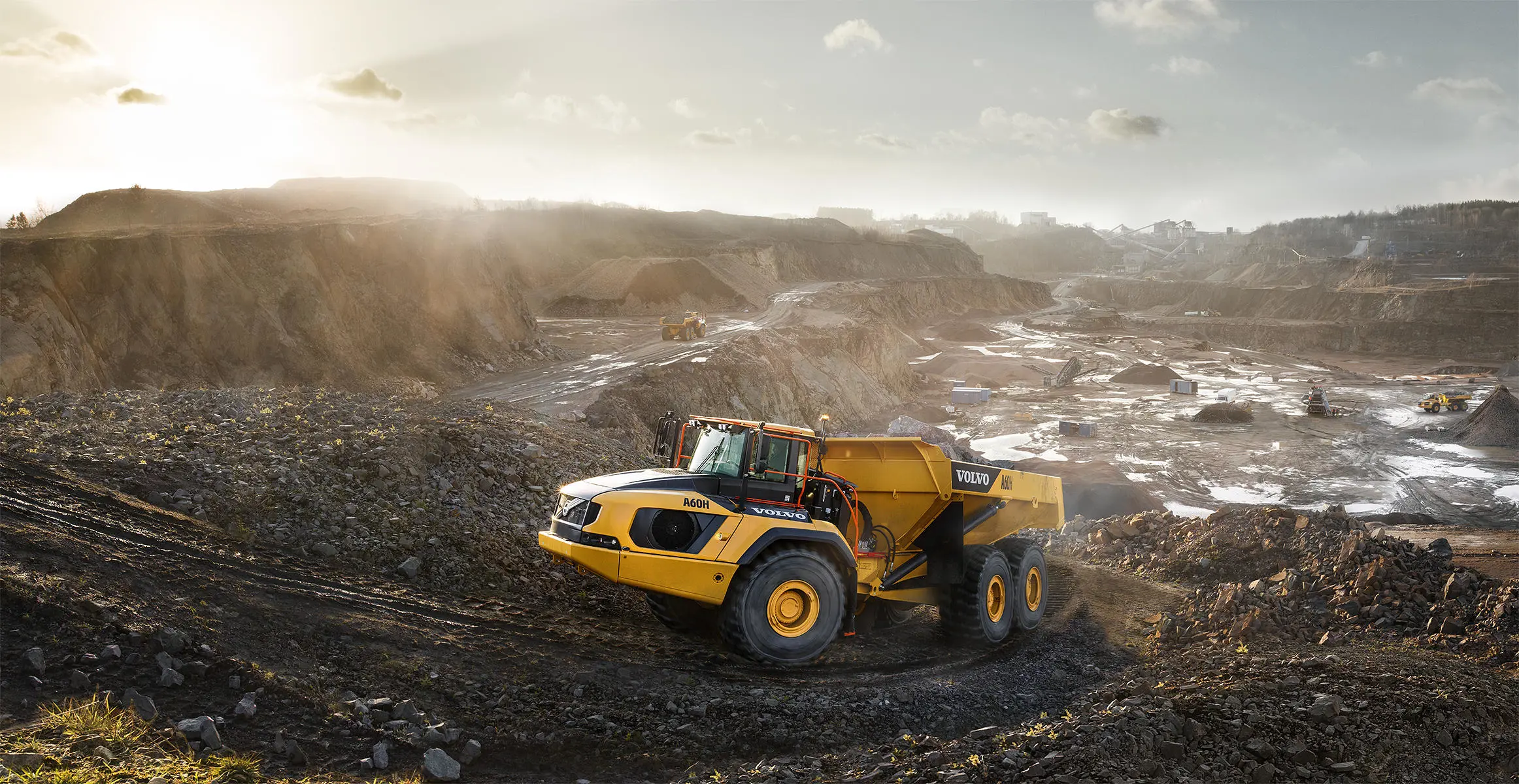

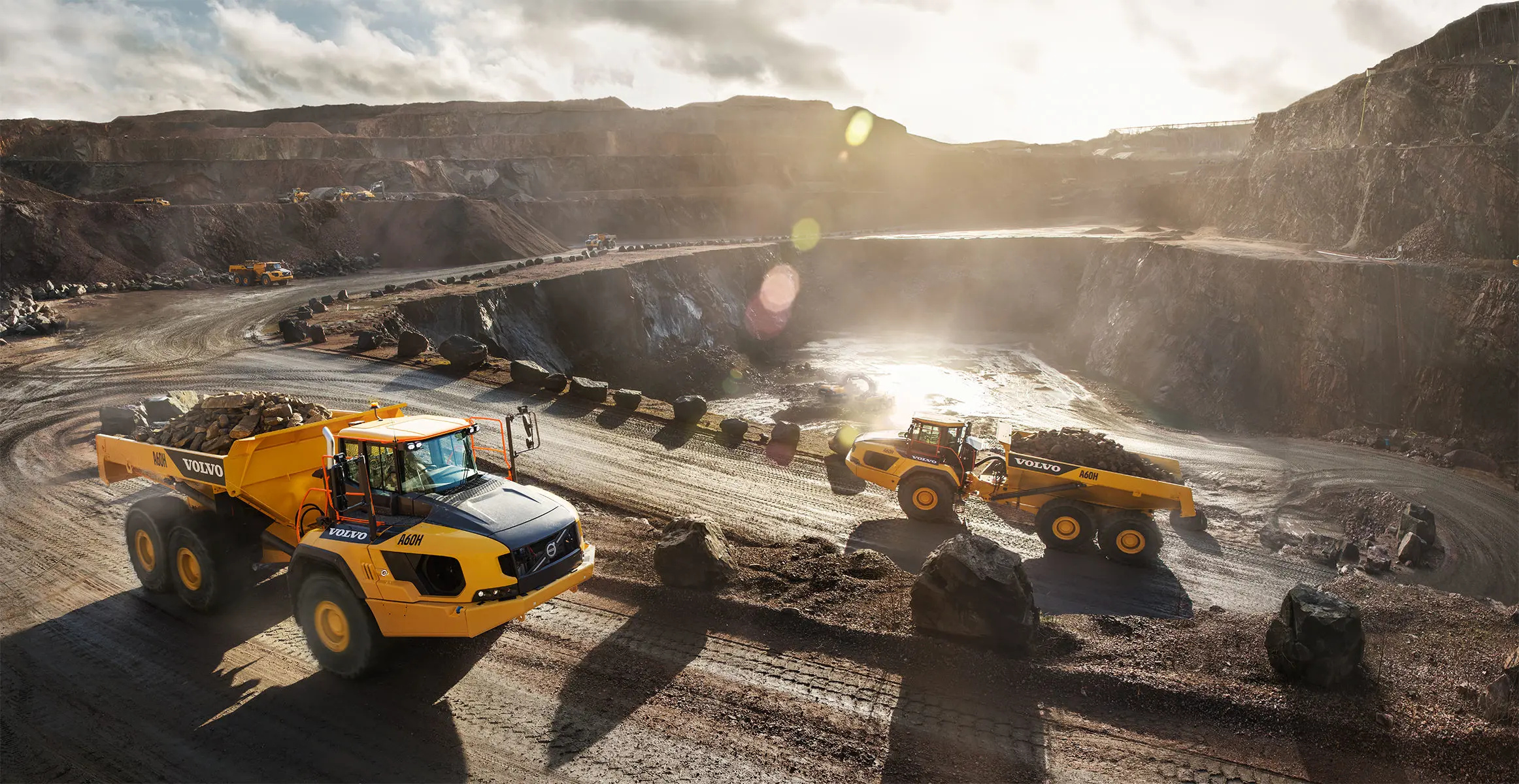

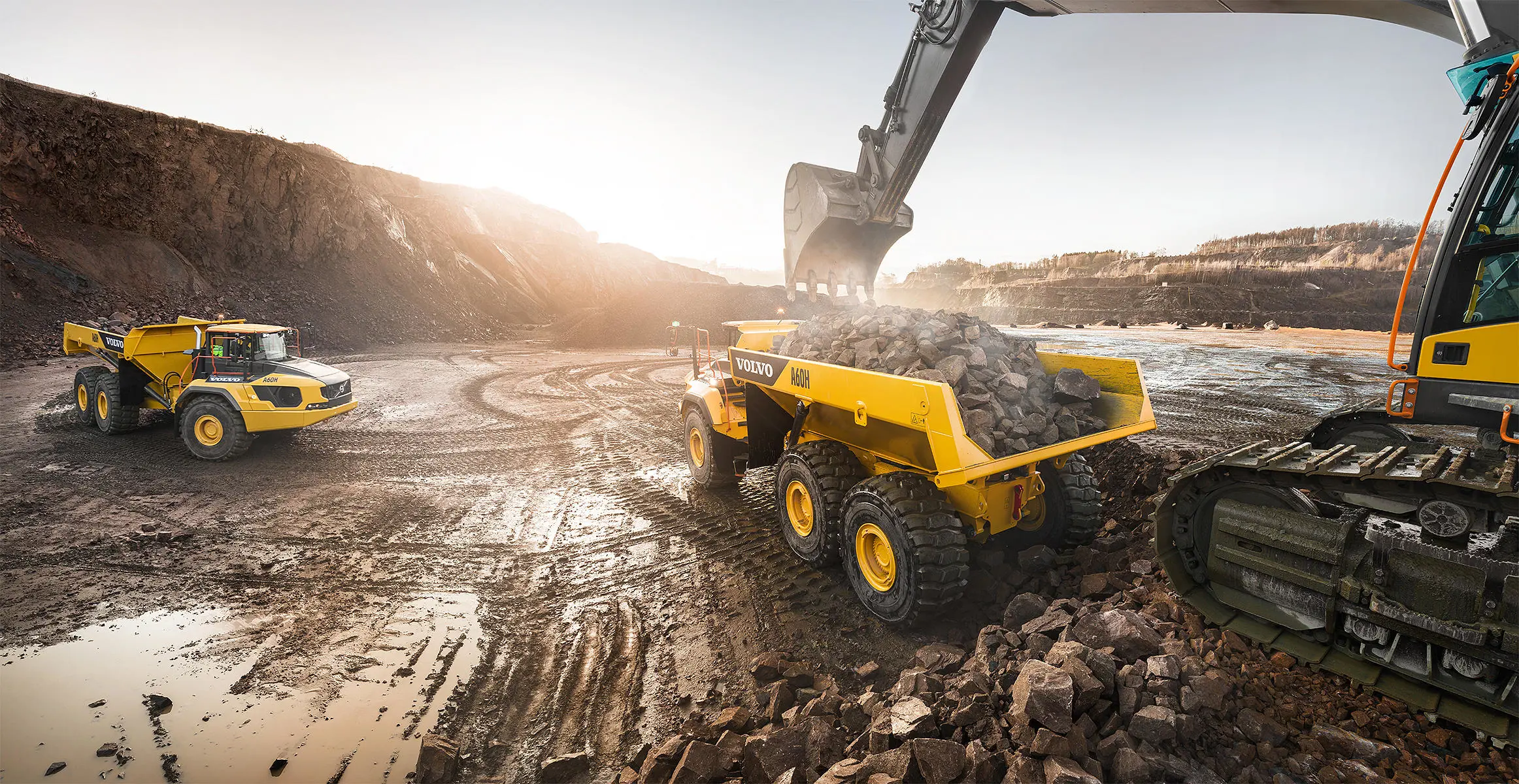

a60h Articulated Haulers

Product ID: A60H
Description

Haul heavy loads in the A60H from Volvo CE. Designed for severe off-road operations, the robust machine's long service life, quality, reliability and durability are everything you'd expect from a Volvo, making hauling easier and more efficient. You'll never have to worry about getting the job done in the A60H.

Features and Benefits
  • Fuel Efficiency Guaranteed
  • Lifetime Frame & Structure Guarantee (Frame, Articulation/Oscillation Joint)
  • Industry-leading service access
  • Volvo Dynamic Drive
  • Operational data: CareTrack, MATRIS & Optional On Board Weighing System
  • Prioritized operator control, comfort & safety
  • Brochures
  • Featured Specifications
  • Full Specifications
Heaped Capacity
Imperial Unit yd 3
Imperial Value 43.9
Metric Unit m 3
Metric Value 33.6
Unicode e610
Payload
Imperial Unit lbs
Imperial Value 121254
Metric Unit kg
Metric Value 55000
Unicode e603
Driveline
Engine Manufacturer Volvo
Engine Model D16J
Number Of Cylinders 6
After Treatment System 3 Selective Catalytic Reduction
Displacement 982 Inches³ (16.1 ltr)
Rated Speed 1800 rpm
Engine Output - Net 626 hp (467 kW)
Engine Output - Gross 630 hp (470 kW)
Torque 2170 lbf / ft (2942 Nm)
Drive Configuration 6 x 6
Final Drive Planetary
Transmission Type Automatic
Traction Control Yes
Front Differential Locking
Second Axle Differential Locking
Third Axle Differential Locking
Centre Transfer Differential Locking
Tire Size - Standard 33.25 R29
Tire Type - Standard Radial
Front Suspension - Type 3 Point
Front Suspension Hydraulic Cylinders
Rear Suspension - Type 3 Point Bogie Beam
Rear Suspension 3 Point
Service Brake - Type Wet Multi Disc
Dimensions
Length - Overall 40 ft 1 in (12225 mm)
Height - Over Cab 12 ft 8 in (3852 mm)
Height - Max 12 ft 8 in (3852 mm)
Ground Clearance 24 inches (601 mm)
Width Over Tires 12 ft 9 in (3884 mm)
Width - Transport 13 ft 1 in (3989 mm)
Width - Operating 13 ft 1 in (3989 mm)
Wheelbase 20 ft 1 in (6120 mm)
Length - Body 20 ft 8 in (6310 mm)
Loading Height 11 ft 6 in (3510 mm)
Full Dump Height 26 ft 1 in (7960 mm)
Hoist - Type Twin, 1-Stage
Dump Angle 70 °
Approach Angle 24.9 °
Articulation Angle 45 ± °
Turning Radius - Outside 32 ft 10 in (10014 mm)
Turning Radius - Inside 15 ft 7 in (4761 mm)
Capacities
Fuel Tank 198.1 gallons (US) (750 ltr)
Heaped Capacity 43.9 yd³ (33.6 m³)
Performance
Cycle Time - Raise 13 s
Unladen Axle Load - Front 50155 lbs (22750 kg)
Unladen Axle Load - Centre 23148.5 lbs (10500 kg)
Unladen Axle Load - Rear 23148.5 lbs (10500 kg)
Unladen Axle Load - Centre + Rear 46297 lbs (21000 kg)
Laden Axle Load - Front 63714 lbs (28900 kg)
Laden Axle Load - Centre 76996.5 lbs (34925 kg)
Laden Axle Load - Rear 76996.5 lbs (34925 kg)
Laden Axle Load - Centre + Rear 153993 lbs (69850 kg)
Front - Unladen 18.1 PSI (125 kPa)
Rear - Unladen 8.4 PSI (58 kPa)
Front - Laden 23.1 PSI (159 kPa)
Rear - Laden 28 PSI (193 kPa)
Speed - Forward Maximum 34 mph (55 kph)
Speed - Reverse Maximum 5 mph (8 kph)
Weights
Net Weight 96452 lbs (43750 kg)
Payload 121254 lbs (55000 kg)
Gross Weight 217706 lbs (98750 kg)
