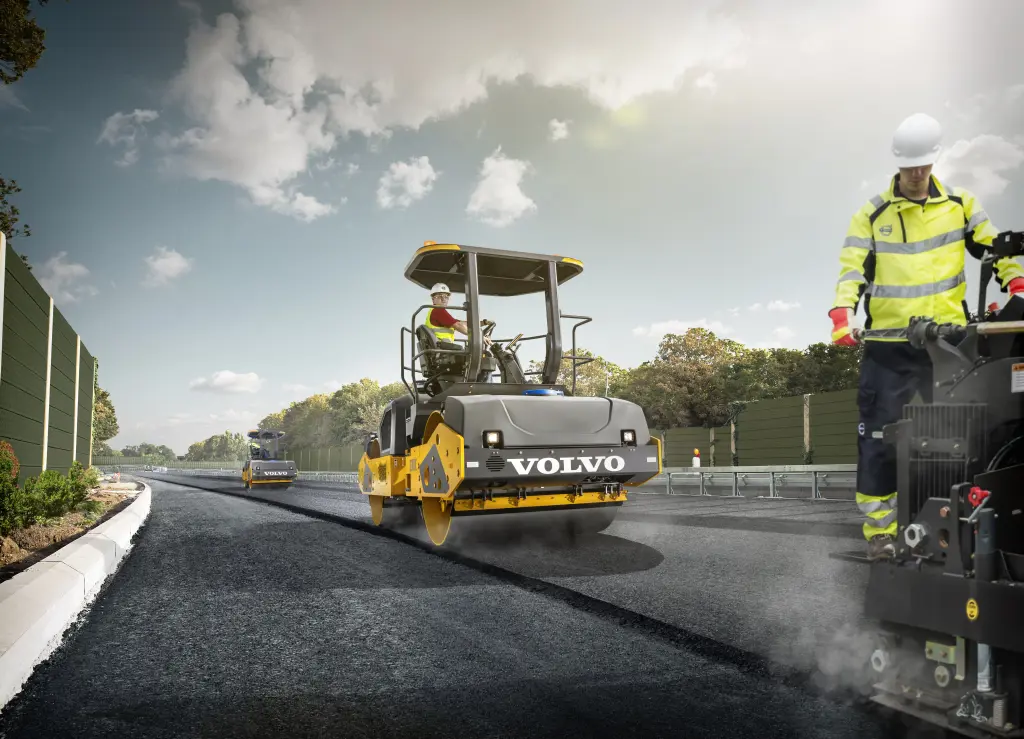

Packed with a range of intelligent features, the DD110C asphalt compactor from Volvo combines productivity and fuel-efficiency to achieve large-scale projects at the highest performance. From highways to airport runways, the asphalt compactor ensures a smooth, even mat finish – because big projects require big performance.
| Engine Output | |
|---|---|
| Imperial Unit | hp |
| Imperial Value | 148 |
| Metric Unit | kW |
| Metric Value | 110 |
| Unicode | e60c |
| Rolling Width | |
| Imperial Unit | inches |
| Imperial Value | 67 |
| Metric Unit | mm |
| Metric Value | 1700 |
| Unicode | e60e |
| Operating Weight | |
| Imperial Unit | lbs |
| Imperial Value | 24355 |
| Metric Unit | kg |
| Metric Value | 11045 |
| Unicode | e605 |
| Driveline | |
|---|---|
| Engine Manufacturer | Volvo |
| Engine Model | D4 |
| Rated Speed | 2200 rpm |
| Engine Output | 148 hp (110 kW) |
| Transmission | Hydrostatic |
| Dimensions | |
| Overall Length | 232 inches (5888 mm) |
| Height - With ROPS | 123 inches (3135 mm) |
| Overall Width | 74 inches (1882 mm) |
| Wheelbase | 140 inches (3550 mm) |
| Drum Width - Front | 67 inches (1700 mm) |
| Drum Width - Rear | 67 inches (1700 mm) |
| Rolling Width | 67 inches (1700 mm) |
| Drum Diameter - Front | 51 inches (1300 mm) |
| Drum Diameter - Rear | 51 inches (1300 mm) |
| Drum Shell Thickness | 0.79 inches (20 mm) |
| Turning Radius - Inside | 158 inches (4025 mm) |
| Capacities | |
| Fuel Tank | 43 gallons (US) (162.8 ltr) |
| DEF Tank | 5.28 gallons (US) (20 ltr) |
| Tank Capacity For Drum | 290 gallons (US) (1098 ltr) |
| Performance | |
| Drive To Drums | Both |
| Travel Speed 1 | 4.7 mph (7.5 kph) |
| Travel Speed 2 | 7.5 mph (12 kph) |
| Max. Travel Speed | 7.5 mph (12 kph) |
| Number Of Frequency/Amplitude Settings | 8 |
| Frequency - Stage 1 - Front | 63.3 Hz |
| Frequency - Stage 1 - Rear | 63.3 Hz |
| Amplitude Stage 1 - Front | 0.01 inches (0.25 mm) |
| Amplitude Stage 2 - Front | 0.011 inches (0.29 mm) |
| Amplitude Stage 1 - Rear | 0.01 inches (0.25 mm) |
| Amplitude Stage 2 - Rear | 0.011 inches (0.29 mm) |
| Centrifugal Force 1 - Front | 16240 lbf (72.2 kN) |
| Centrifugal Force 2 - Front | 18290 lbf (81.4 kN) |
| Centrifugal Force 3 - Front | 23090 lbf (102.7 kN) |
| Centrifugal Force 4 - Front | 28640 lbf (127.4 kN) |
| Centrifugal Force 5 - Front | 33750 lbf (150.1 kN) |
| Centrifugal Force 6 - Front | 37760 lbf (168 kN) |
| Centrifugal Force 7 - Front | 40300 lbf (179.3 kN) |
| Centrifugal Force 8 - Front | 41170 lbf (183.1 kN) |
| Centrifugal Force 1 - Rear | 16240 lbf (72.2 kN) |
| Centrifugal Force 2 - Rear | 18290 lbf (81.4 kN) |
| Centrifugal Force 3 - Rear | 23090 lbf (102.7 kN) |
| Centrifugal Force 4 - Rear | 28640 lbf (127.4 kN) |
| Centrifugal Force 5 - Rear | 33750 lbf (150.1 kN) |
| Centrifugal Force 6 - Rear | 37760 lbf (168 kN) |
| Centrifugal Force 7 - Rear | 40300 lbf (179.3 kN) |
| Centrifugal Force 8 - Rear | 41170 lbf (183.1 kN) |
| Max Amplitude | 0.025 inches (0.64 mm) |
| Min Amplitude | 0.01 inches (0.25 mm) |
| Max Frequency | 63.3 Hz |
| Min Frequency | 63.3 Hz |
| Max Centrifugal Force | 41170 lbf (183.1 kN) |
| Min Centrifugal Force | 16240 lbf (72.2 kN) |
| Weights | |
| Operating Weight | 24355 lbs (11045 kg) |
| Weight - Front | 12880 lbs (5841 kg) |
| Weight - Rear | 11475 lbs (5204 kg) |
