ec250e hybrid Large Crawler Excavators

Name: Nors Equipment
Rating: 4.9

Product ID: EC250E HYBRID

Description

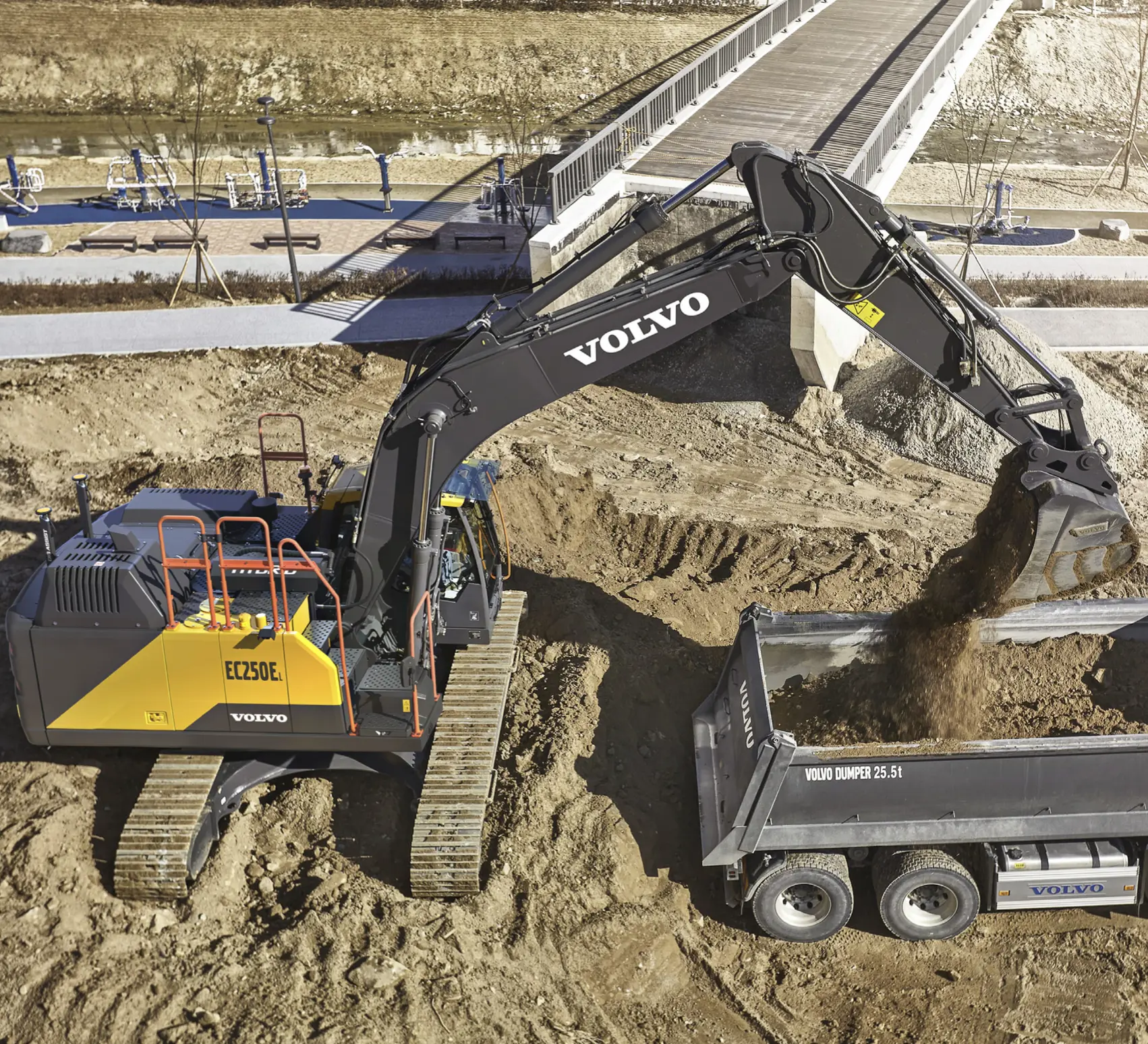

BOOST YOUR PRODUCTIVITY WITH THE EC250E EXCAVATOR

Volvo's EC250E Excavator is a powerful and efficient machine designed to reduce fuel consumption and increase your productivity. With advanced technology, the machines deliver a significant improvement in fuel efficiency, saving your business time and cost. Put your mind at ease with Volvo.

Features and Benefits

ECO MODE
Volvo's unique ECO mode improves fuel efficiency without any loss of performance.
PROPORTIONAL TWO-PUMP FLOW
The proportional two-pump flow makes it easier for the operator to improve the machine's controllability for a higher quality grading finish. The ease of operation helps to get a quality job done quicker.
BOLT-ON WEAR PLATES
At the arm end where the most movement and wear occurs, Volvo provides wear plates which are easily replaced in a matter of hours in the field – a service that can't be matched by its competitors
AIR COMPRESSOR
Volvo now offers an optional and unique air compressor system. The air compressor with air blower, fitted in the cab for easy access, is a powerful tool and can be used to clean the cab whenever necessary.
HUMAN MACHINE INTERFACE (HMI)
All machine interfaces are ergonomically positioned and designed for optimum control and efficiency.

Brochures
Featured Specifications
Full Specifications

Engine Output - Gross
Imperial Unit	hp
Imperial Value	225
Metric Unit	kW
Metric Value	168
Unicode	e60b
Bucket Capacity
Imperial Unit	yd³
Imperial Value	0.73 - 2.3
Metric Unit	m³
Metric Value	0.56 - 1.76
Unicode	e60f
Operating Weight
Imperial Unit	lbs
Imperial Value	61340
Metric Unit	kg
Metric Value	27820
Unicode	e605

Description
Standard Arm Length	9 ft 9 in (2970 mm)
Telematics
Telematics Available	Yes
Driveline
Engine Manufacturer	Volvo
Engine Model	D8M
Displacement	469.9 Inches³ (7.7 ltr)
Rated Speed	1600 rpm
Engine Output - Net	224 hp (167 kW)
Engine Output - Gross	225 hp (168 kW)
Number Of Track Rollers - Each Side	9
Track Shoe Width	32 inches (800 mm)
Dimensions
Bucket Capacity	0.73-2.3 yd³ (0.56-1.76 m³)
Bucket Weight	1763-3163 lbs (800-1435 kg)
Transport Length Mono Boom	33 ft 7 in (10230 mm)
Max Transport Height	11 ft 6 in (3515 mm)
Max Machine Width	10 ft 6 in (3190 mm)
Track Length On Ground	12 ft 8 in (3850 mm)
Zero Tailswing	No
Heaped Bucket Capacity	1.49 yd³ (1.14 m³)
Variable Undercarriage Availability	No
Ground Level Reach	33 ft 4 in (10160 mm)
Dig Height	31 ft 9 in (9685 mm)
Dump Height - Mono Boom	22 ft (6710 mm)
Dig Depth	23 ft 2 in (7060 mm)
Capacities
Fuel Tank	124.7 gallons (US) (472 ltr)
Performance
Ground Bearing Pressure	6 PSI (41.2 kPa)
Arm Tearout	28740 lbf (128 kN)
Bucket Breakout	40710 lbf (181 kN)
Number Of Main Pumps	2
Main Pump - Flow	126.8 gallons (US) / min (480 lt/min)
Weights
Operating Weight	61340 lbs (27820 kg)
