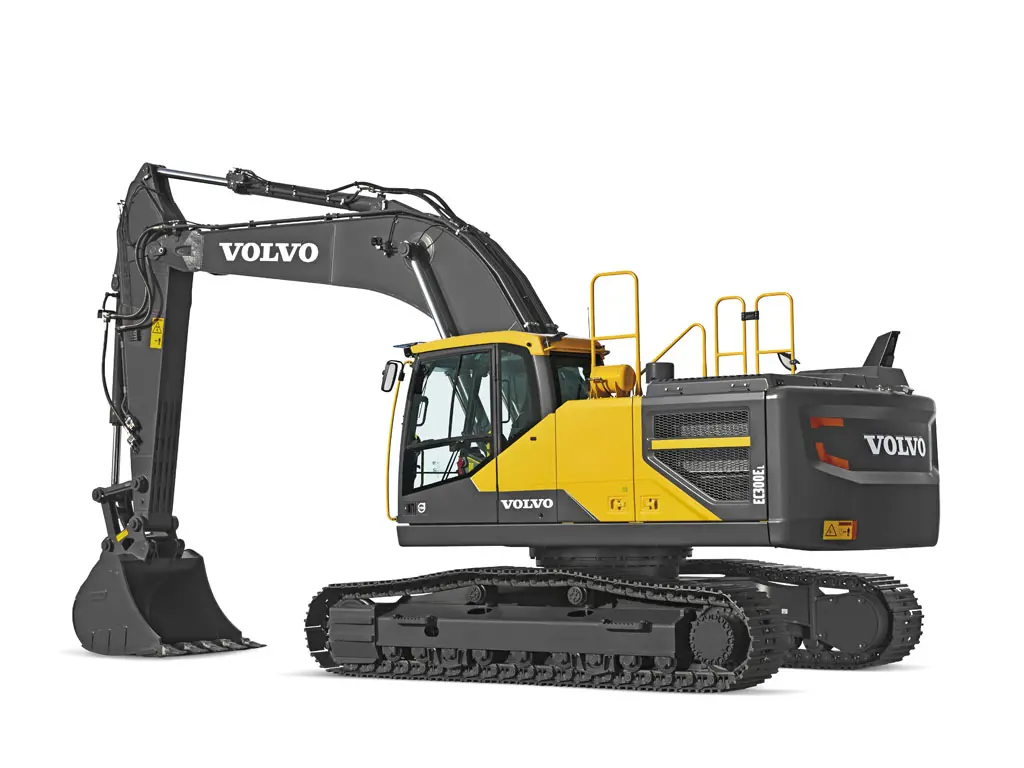

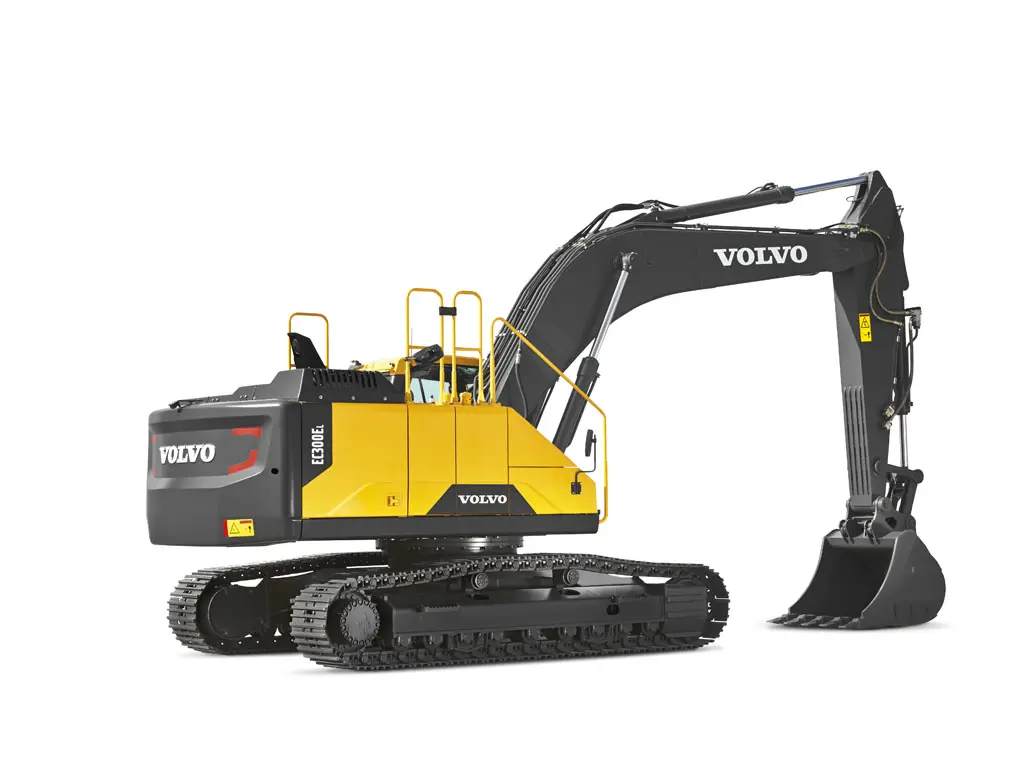

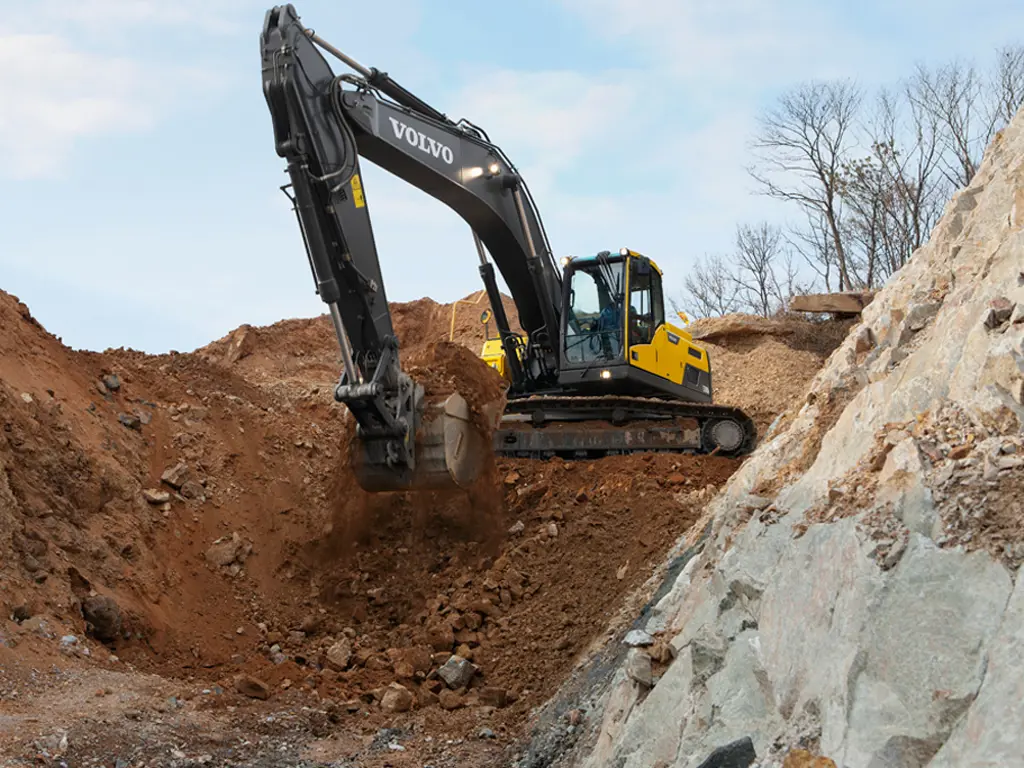

ec300e Large Crawler Excavators

Product ID: EC300E

Description

It's a fact that operators work more efficiently when they're given the best tools for the job. That's why, on top of being a superior production machine, the EC300E Excavator has an ergonomic design with ideally placed controls and switches. With built in comfort and optimized control, operators will work efficiently and productively all day long.

Features and Benefits

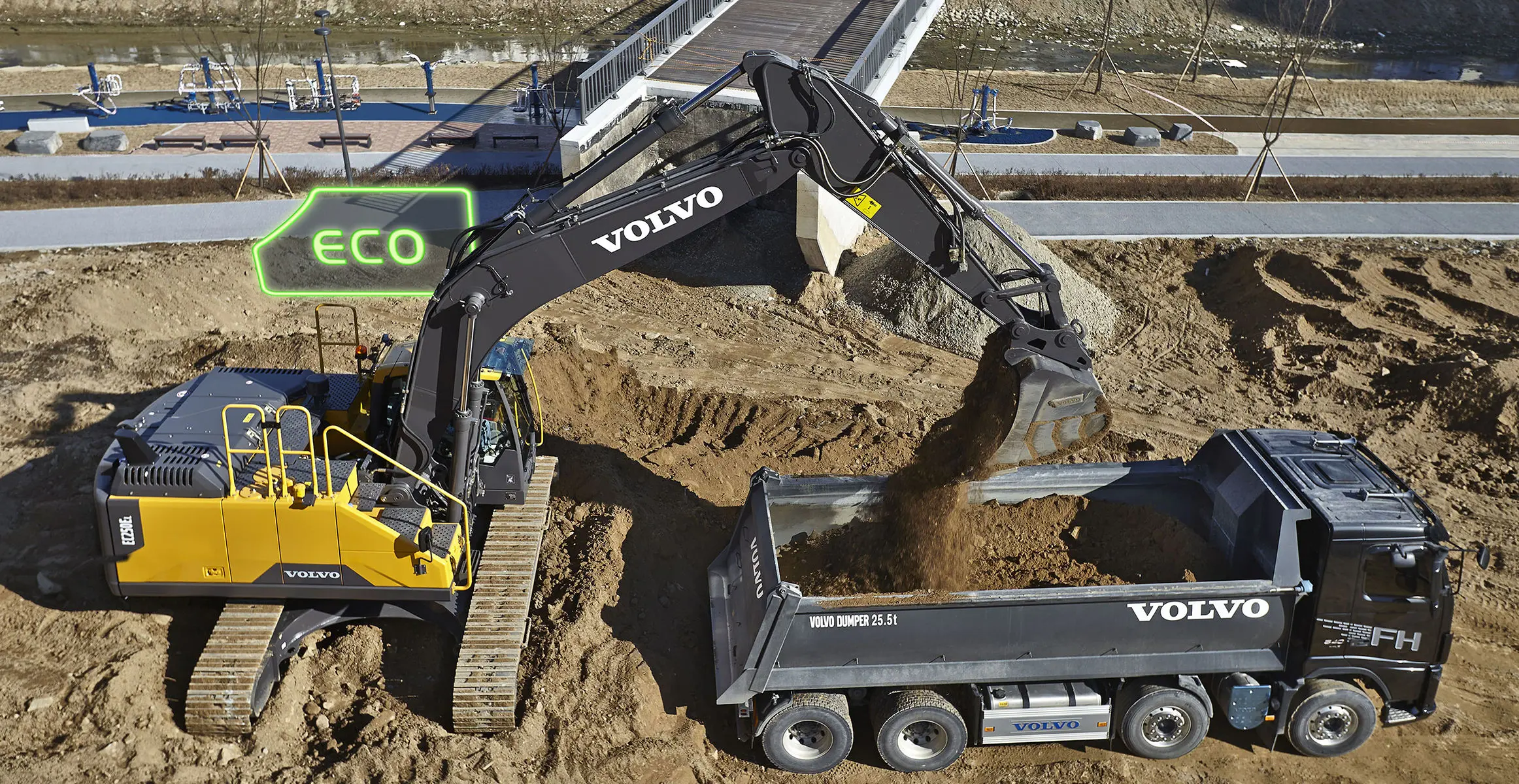

ECO MODE
Volvo's unique ECO mode improves fuel efficiency without any loss of performance.

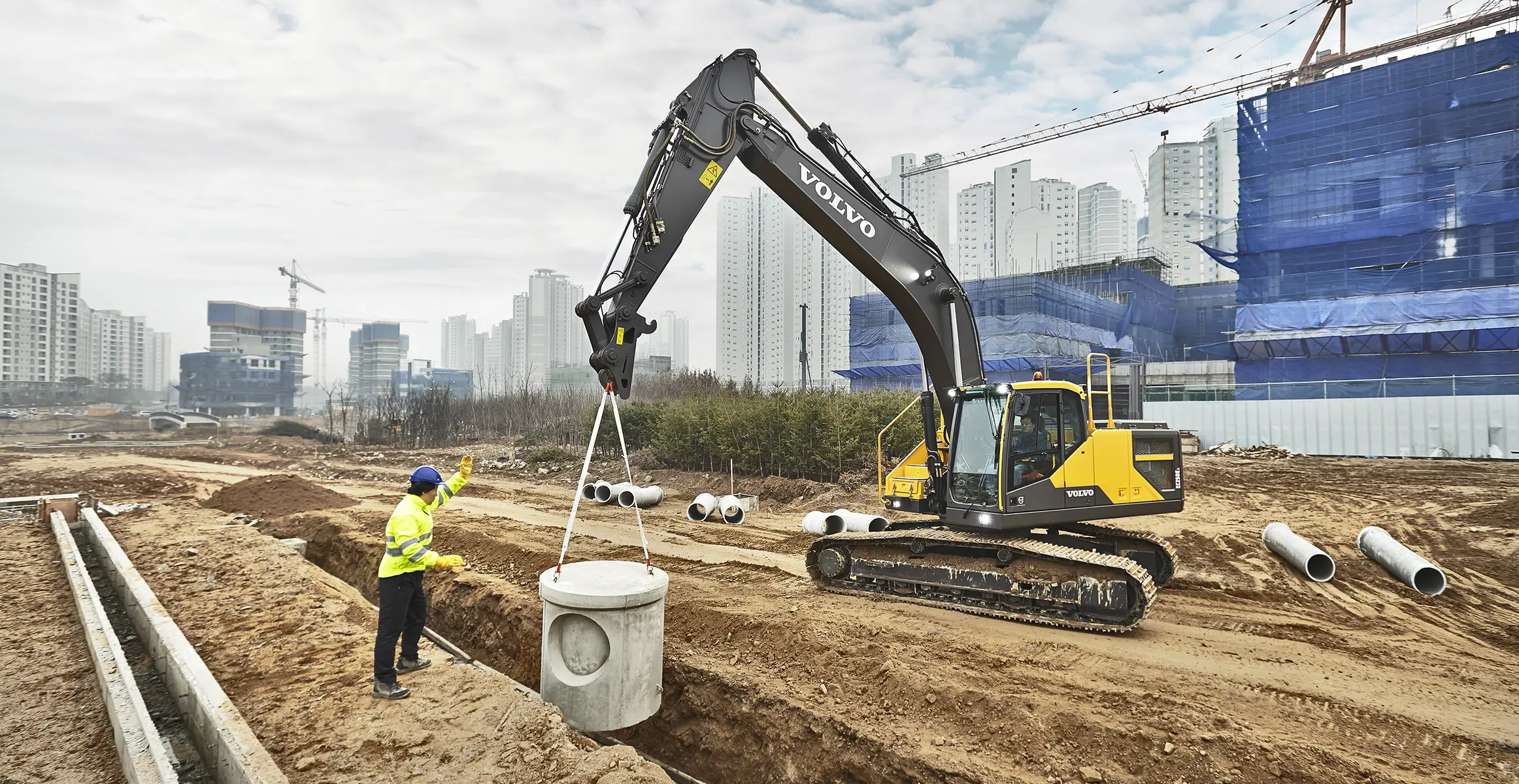

PROPORTIONAL TWO-PUMP FLOW
The proportional two-pump flow makes it easier for the operator to improve the machine's controllability for a higher quality grading finish. The ease of operation helps to get a quality job done quicker.

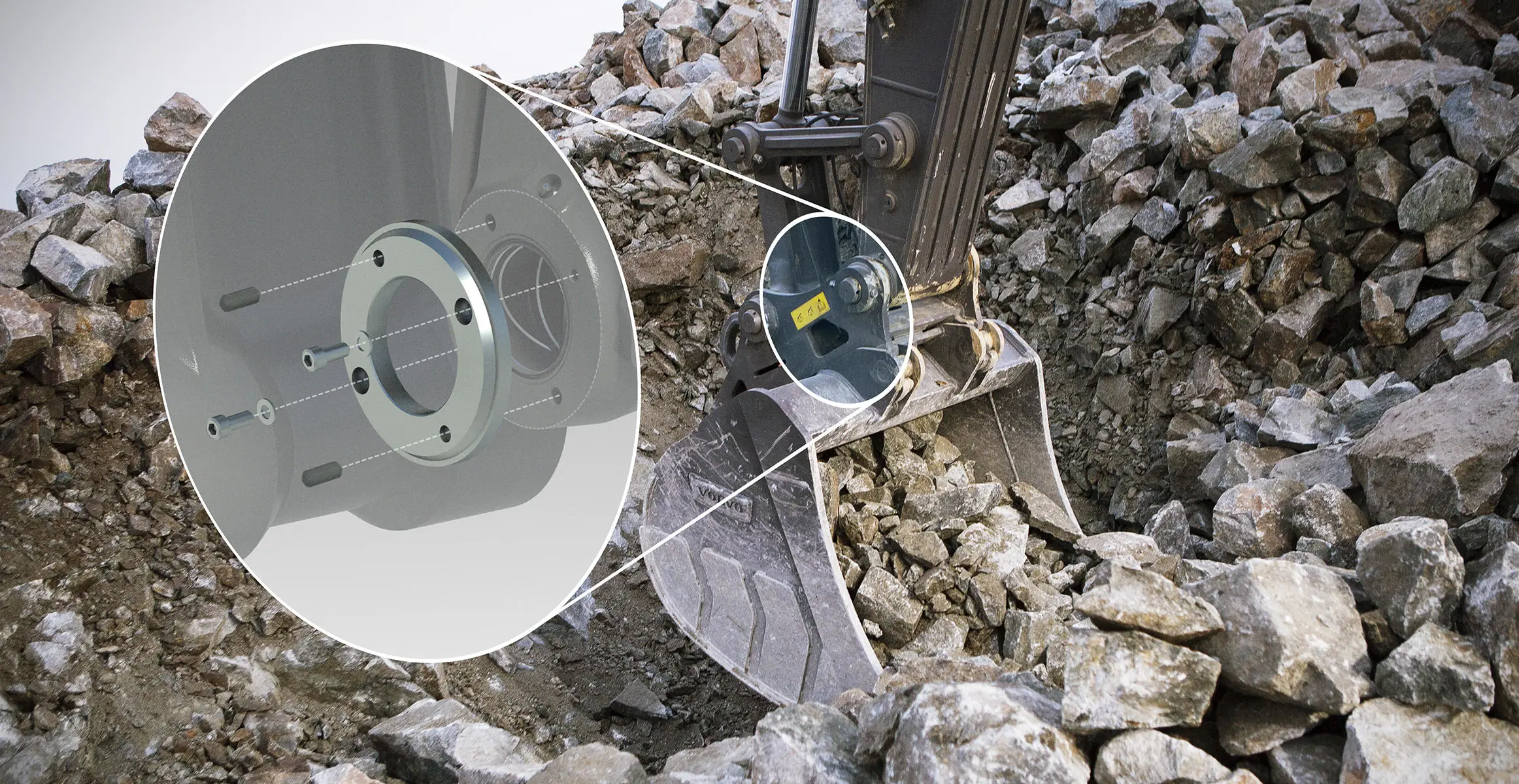

BOLT-ON WEAR PLATES
At the arm end where the most movement and wear occurs, Volvo provides wear plates which are easily replaced in a matter of hours in the field – a service that can't be matched by its competitor.
AIR COMPRESSOR
Volvo now offers an optional and unique air compressor system. The air compressor with air blower, fitted in the cab for easy access, is a powerful tool and can be used to clean the cab whenever necessary.

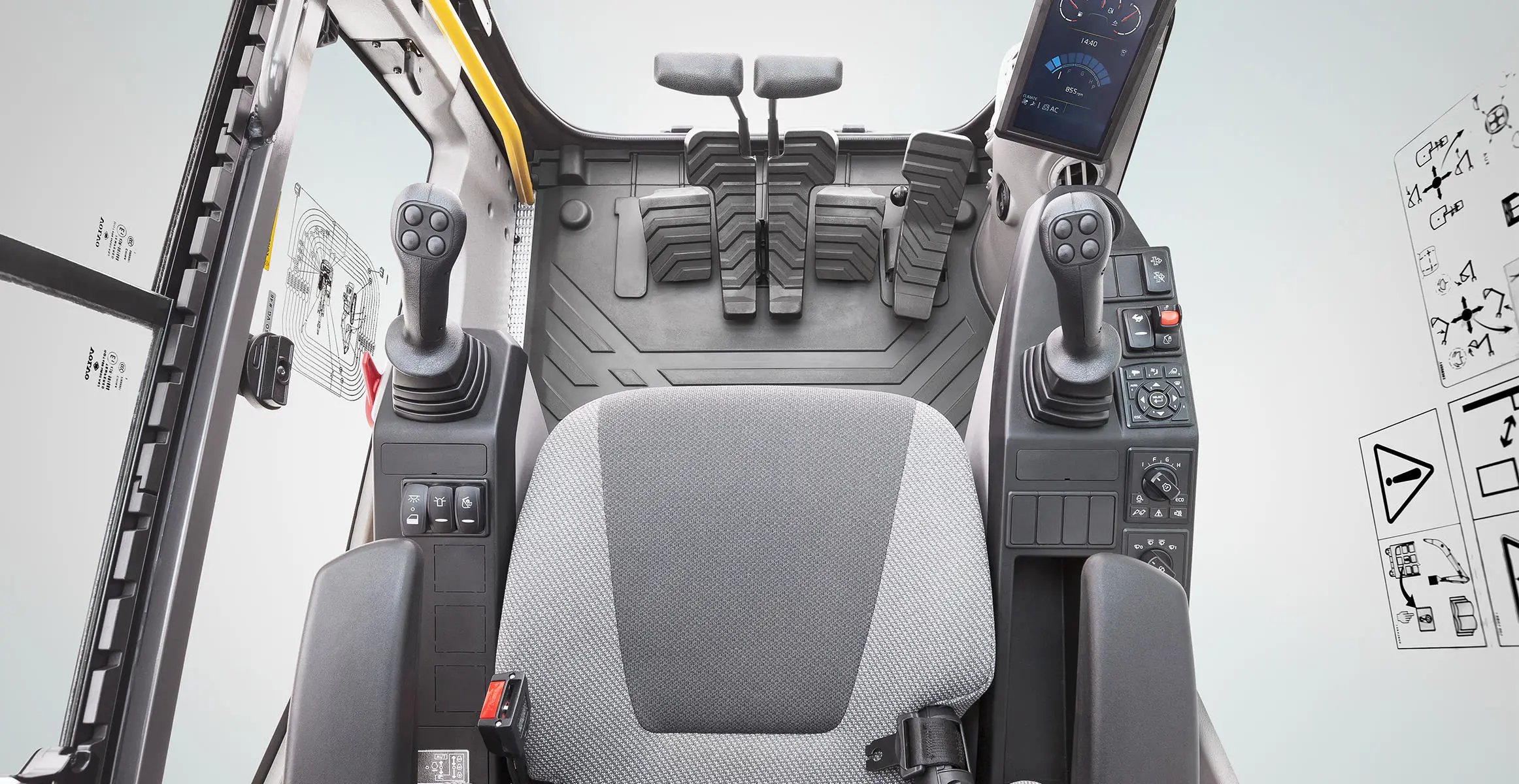

HUMAN MACHINE INTERFACE (HMI)
All machine interfaces are ergonomically positioned and designed for optimum control and efficiency.

Brochures
Featured Specifications
Full Specifications

Engine Output - Gross
Imperial Unit	hp
Imperial Value	253
Metric Unit	kW
Metric Value	189
Unicode	e60b
Bucket Capacity
Imperial Unit	yd³
Imperial Value	0.72 - 2.69
Metric Unit	m³
Metric Value	0.55 - 2.06
Unicode	e60f
Operating Weight
Imperial Unit	lbs
Imperial Value	69660
Metric Unit	kg
Metric Value	31590
Unicode	e605

Description
Operating Weight	69660 lbs (31590 kg)
Standard Arm Length	10 ft (3050 mm)
Telematics
Telematics Available	Yes
Driveline
Engine Manufacturer	Volvo
Engine Model	D8M
Displacement	470 Inches³ (7.7 ltr)
Rated Speed	1600 rpm
Engine Output - Net	252 hp (188 kW)
Engine Output - Gross	253 hp (189 kW)
Number Of Track Rollers - Each Side	9
Track Shoe Width	32 inches (800 mm)
Dimensions
Bucket Capacity	0.72-2.69 yd³ (0.55-2.06 m³)
Bucket Weight	1946-3506 lbs (883-1590 kg)
Transport Length Mono Boom	34 ft 5 in (10500 mm)
Max Transport Height	11 ft 9 in (3580 mm)
Max Machine Width	11 ft 5 in (3490 mm)
Track Length On Ground	13 ft 3 in (4015 mm)
Zero Tailswing	No
Heaped Bucket Capacity	1.73 yd³ (1.32 m³)
Variable Undercarriage Availability	No
Ground Level Reach	34 ft 7 in (10520 mm)
Dig Height	32 ft 9 in (9980 mm)
Dump Height - Mono Boom	23 ft 2 in (7040 mm)
Dig Depth	24 ft 1 in (7340 mm)
Capacities
Fuel Tank	124.7 gallons (US) (472 ltr)
Performance
Ground Bearing Pressure	6.63 PSI (45.7 kPa)
Arm Tearout	33250 lbf (148 kN)
Bucket Breakout	46450 lbf (207 kN)
Number Of Main Pumps	2
Main Pump - Flow	145.8 gallons (US) / min (552 lt/min)
