ec300e hybrid Large Crawler Excavators

Name: Nors Equipment
Rating: 4.1

Volvo Large Crawler Excavators EC300E HYBRID

Product ID: EC300E HYBRID

Description

SIMPLE SOLUTION, BIG SAVINGS

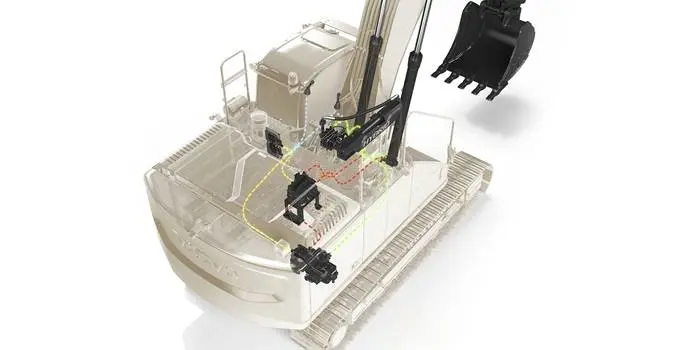

Introducing the upgraded EC300E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator utilizes the boom down motion to charge the accumulator, with the stored energy used to drive the assist motor lowering the torque requirement on the engine. The result is up to 15% lower fuel consumption while delivering all the power and performance you would expect from a conventional EC300E.

Features and Benefits

SIMPLY RELIABLE
The uncomplicated and reliable hybrid solution is easy to maintain and consists of just a handful of add-on components, meaning no disruption or complication to how the high performing EC300E is engineered.
CLEANER AND GREENER
The EC300E Hybrid reduces CO₂ emissions by up to 15% making it a more environmentally respectful choice, especially when working in built-up areas.
THE VALUE OF EFFICIENCY
When working in dig and dump applications, the EC300E Hybrid is a straightforward solution with rapid payback. Save fuel, lower emissions and boost the profitability of your operation.

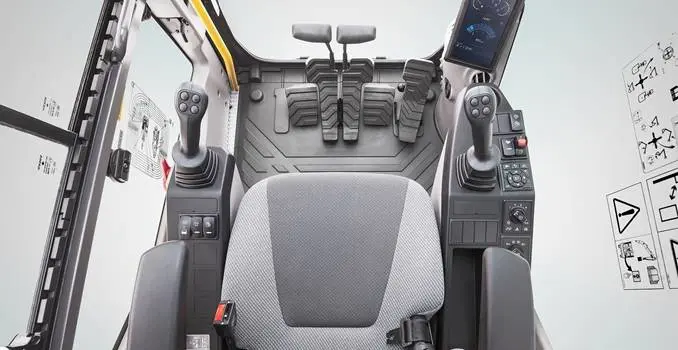

SAFETY, INSIDE AND OUT
With a host of new and proven features including enhanced machine access, superior visibility, bouncing reduction technology and customizable settings, the upgraded EC300E Hybrid delivers all the safety and comfort you would expect from your Volvo machine.
EASILY ATTACH
Get the most out of your excavator with our range of purpose-built attachments, designed to work in perfect harmony with your machine. Customize your EC300E Hybrid with quality Volvo attachments, matched to your needs, to form one solid and reliable unit that delivers improved cycle times and increased fuel efficiency.
POWERED BY EXCELLENCE
Durable by design, the new EC300E Hybrid is ready to take on the toughest applications. The machine delivers outstanding levels of reliability and with features including engine auto-regeneration, reinforced components and reduced maintenance requirements, you can count on the EC300E Hybrid to maximize uptime while keeping maintenance costs to a minimum.

Brochures
Featured Specifications
Full Specifications

Engine Output - Gross
Imperial Unit	hp
Imperial Value	253
Metric Unit	kW
Metric Value	189
Unicode	e60b
Bucket Capacity
Imperial Unit	yd³
Imperial Value	0.72 - 2.69
Metric Unit	m³
Metric Value	0.55 - 2.06
Unicode	e60f
Operating Weight
Imperial Unit	lbs
Imperial Value	70710
Metric Unit	kg
Metric Value	32070
Unicode	e605

Description
Standard Arm Length	10 ft (3050 mm)
Telematics
Telematics Available	Yes
Driveline
Engine Manufacturer	Volvo
Engine Model	D 8M
Displacement	469.9 Inches³ (7.7 ltr)
Rated Speed	1600 rpm
Engine Output - Net	252 hp (188 kW)
Engine Output - Gross	253 hp (189 kW)
Number Of Track Rollers - Each Side	9
Track Shoe Width	31.5 inches (800 mm)
Dimensions
Bucket Capacity	0.72-2.69 yd³ (0.55-2.06 m³)
Bucket Weight	1946-3506 lbs (883-1590 kg)
Transport Length Mono Boom	34 ft 5 in (10500 mm)
Max Transport Height	11 ft 9 in (3570 mm)
Max Machine Width	11 ft 5 in (3490 mm)
Track Length On Ground	13 ft 3 in (4015 mm)
Zero Tailswing	No
Heaped Bucket Capacity	1.73 yd³ (1.32 m³)
Variable Undercarriage Availability	No
Ground Level Reach	34 ft 6 in (10520 mm)
Dig Height	32 ft 9 in (9980 mm)
Dump Height - Mono Boom	23 ft 2 in (7040 mm)
Dig Depth	24 ft 1 in (7340 mm)
Capacities
Fuel Tank	124.7 gallons (US) (472 ltr)
Performance
Ground Bearing Pressure	6.7 PSI (46.4 kPa)
Arm Tearout	33250 lbf (148 kN)
Bucket Breakout	46450 lbf (207 kN)
Number Of Main Pumps	2
Main Pump - Flow	145.8 gallons (US) / min (552 lt/min)
Weights
Operating Weight	70710 lbs (32070 kg)
