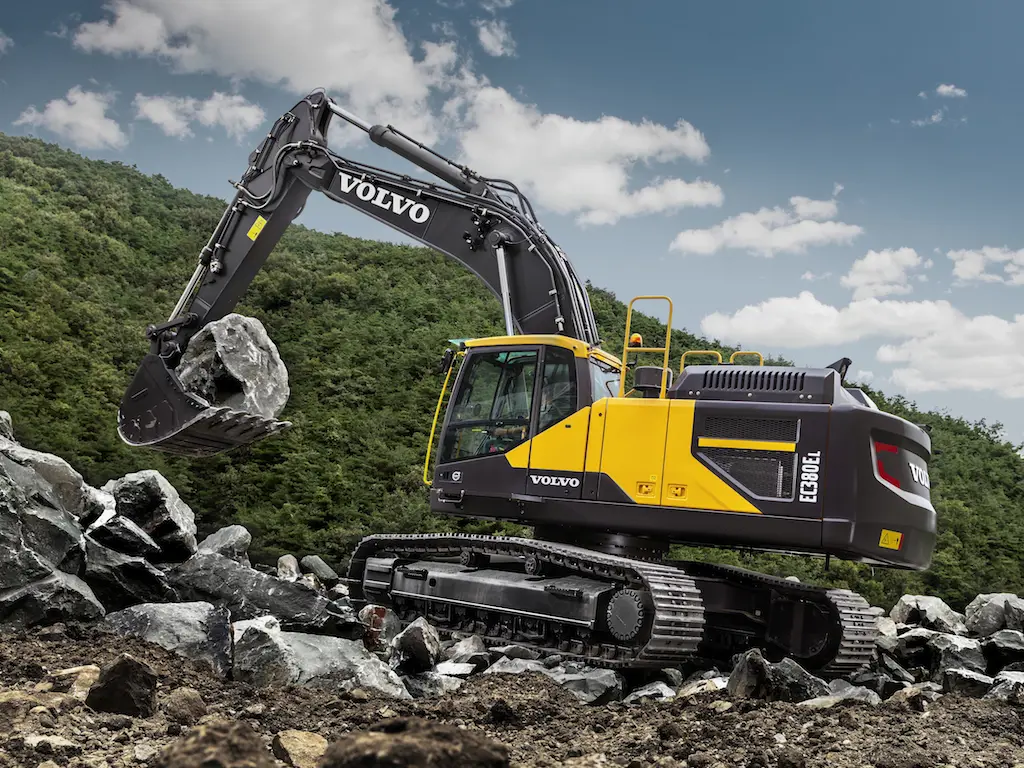

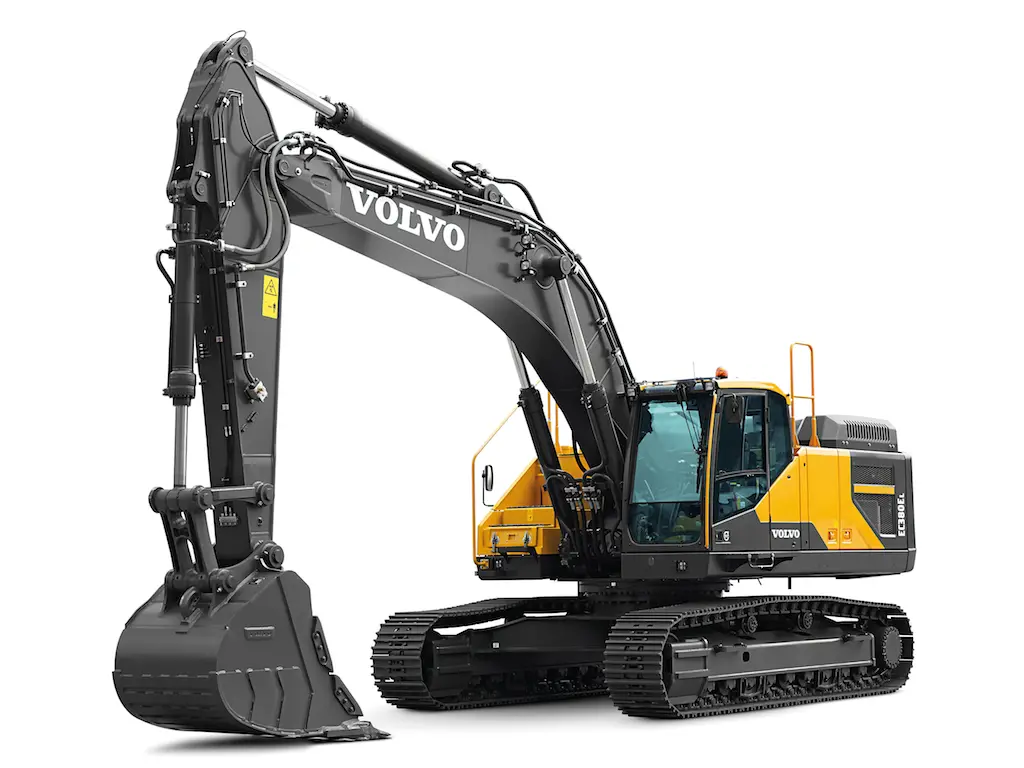

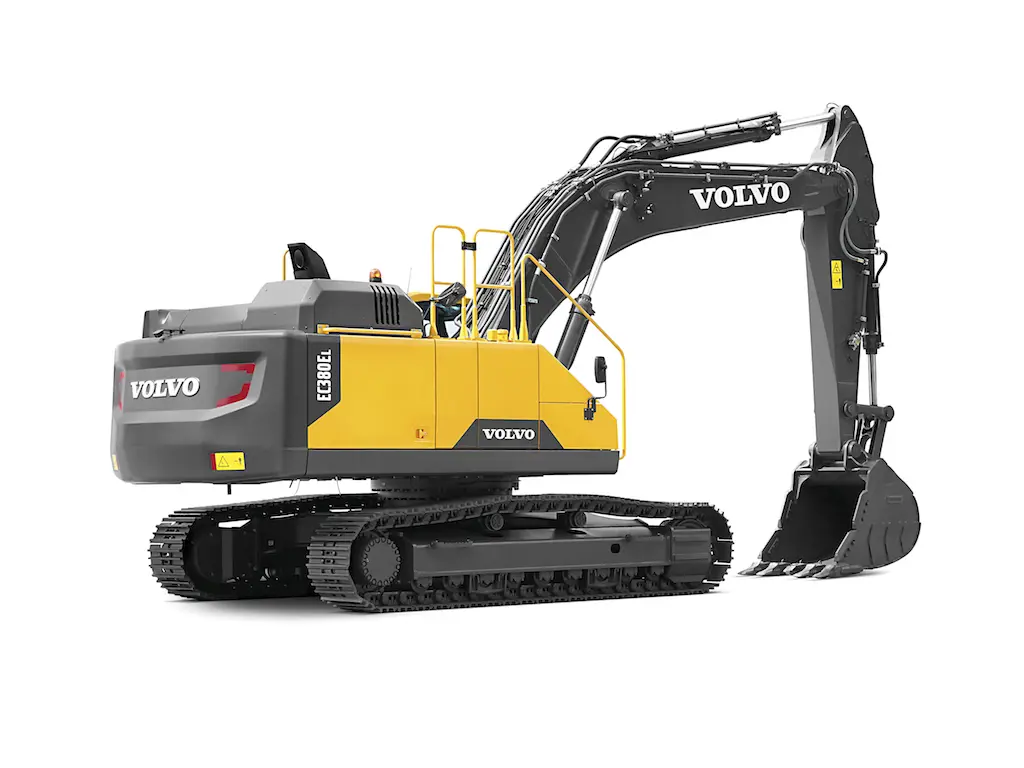

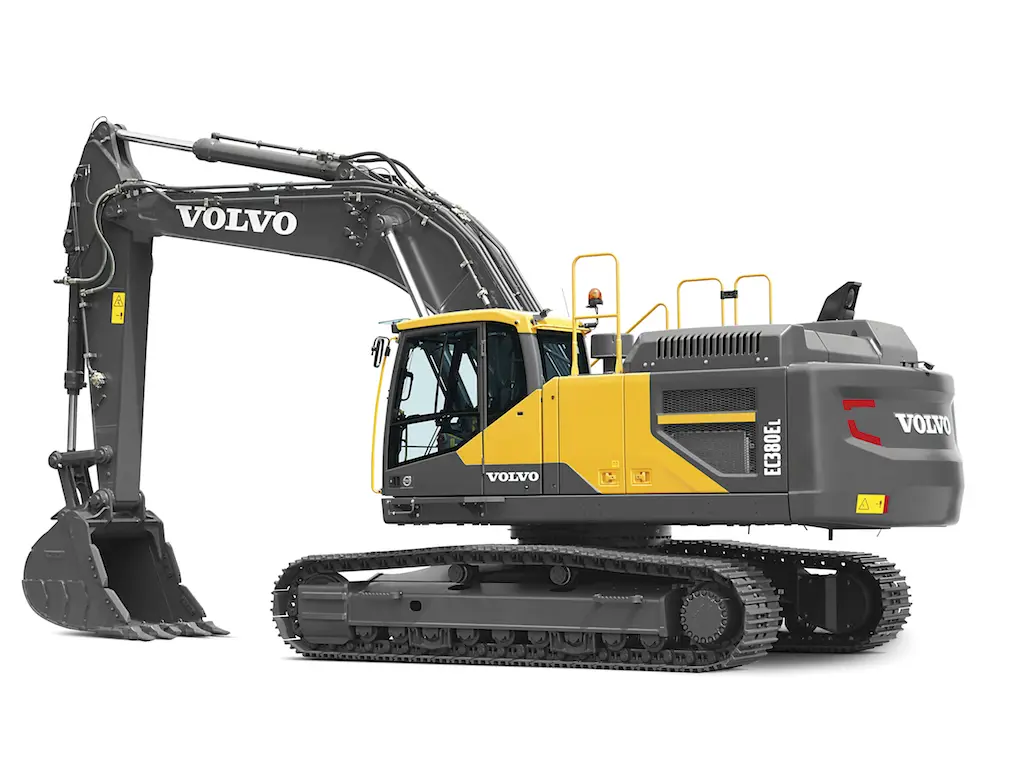

From quarries to mass excavation, the Volvo EC380E Excavator has been built to work on tough job sites. Featuring a robust, reinforced structure and high quality welding, the EC380E boasts superior strength and durability. Experience the reliability you can count on with Volvo.
| Engine Output - Gross | |
|---|---|
| Imperial Unit | hp |
| Imperial Value | 303 |
| Metric Unit | kW |
| Metric Value | 226 |
| Unicode | e60b |
| Bucket Capacity | |
| Imperial Unit | yd 3 |
| Imperial Value | 1.1 - 3 |
| Metric Unit | m 3 |
| Metric Value | 0.87 - 2.33 |
| Unicode | e60f |
| Operating Weight | |
| Imperial Unit | lbs |
| Imperial Value | 87640 |
| Metric Unit | kg |
| Metric Value | 39748 |
| Unicode | e605 |
| Description | |
|---|---|
| Standard Arm Length | 10 ft 6 in (3200 mm) |
| Driveline | |
| Engine Manufacturer | Volvo |
| Engine Model | D 13J |
| Displacement | 781 Inches³ (12.8 ltr) |
| Rated Speed | 1700 rpm |
| Engine Output - Net | 302 hp (225 kW) |
| Engine Output - Gross | 303 hp (226 kW) |

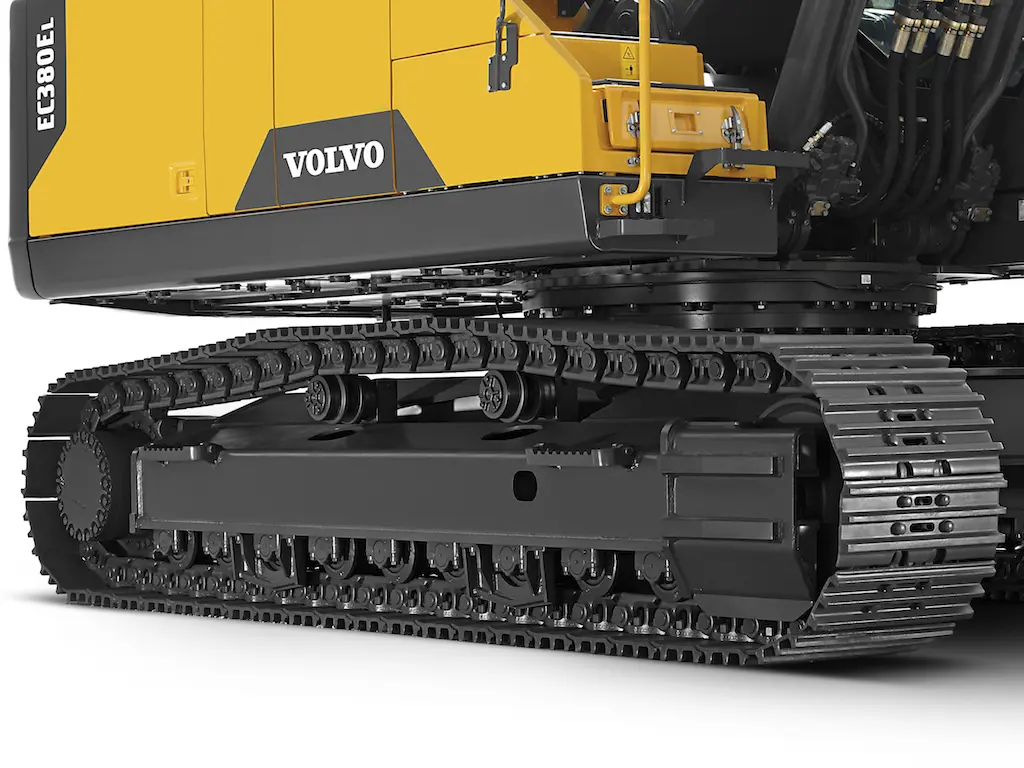

| Number Of Track Rollers - Each Side | 9 |
| Track Shoe Width | 32 inches (800 mm) |
| Dimensions | |
| Bucket Capacity | 1.1-3 yd³ (0.87-2.33 m³) |
| Bucket Weight | 2808-4337 lbs (1274-1967 kg) |
| Transport Length Mono Boom | 36 ft 10 in (11225 mm) |
| Max Transport Height | 12 ft 1 in (3685 mm) |
| Max Machine Width | 11 ft 11 in (3640 mm) |
| Track Length On Ground | 13 ft 11 in (4240 mm) |
| Zero Tailswing | No |
| Track Gauge - Standard | 9 ft (2740 mm) |
| Variable Undercarriage Availability | No |
| Ground Level Reach | 35 ft 7 in (10860 mm) |
| Dig Height | 33 ft 11 in (10340 mm) |
| Dump Height - Mono Boom | 23 ft 11 in (7285 mm) |
| Dig Depth | 24 ft 3 in (7390 mm) |
| Mono Boom - Size | 21 ft 2 in (6.45 m) |
| Standard Arm | 10 ft 6 in (3200 mm) |
| Longest Arm | 12 ft 10 in (3900 mm) |
| Capacities | |
| Fuel Tank | 164 gallons (US) (620 ltr) |
| Performance | |
| Ground Bearing Pressure | 7.9 PSI (54.4 kPa) |
| Arm Tearout | 40690 lbf (181 kN) |
| Bucket Breakout | 54560 lbf (242.7 kN) |
| Main Pump | Variable axial piston |
| Number Of Main Pumps | 2 |
| Main Pump - Flow | 158 gallons (US) / min (600 lt/min) |
| Weights | |
| Operating Weight | 87640 lbs (39748 kg) |
