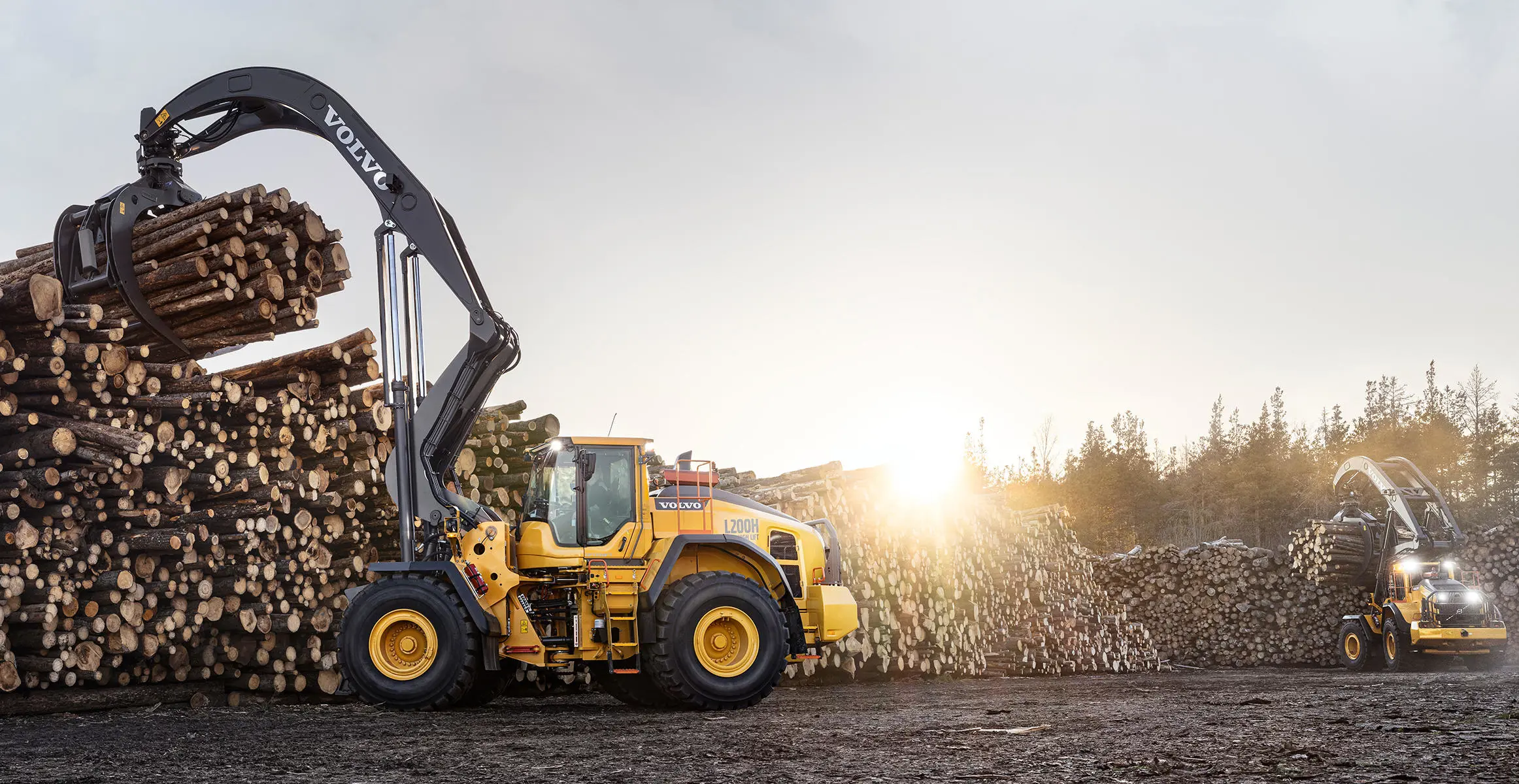

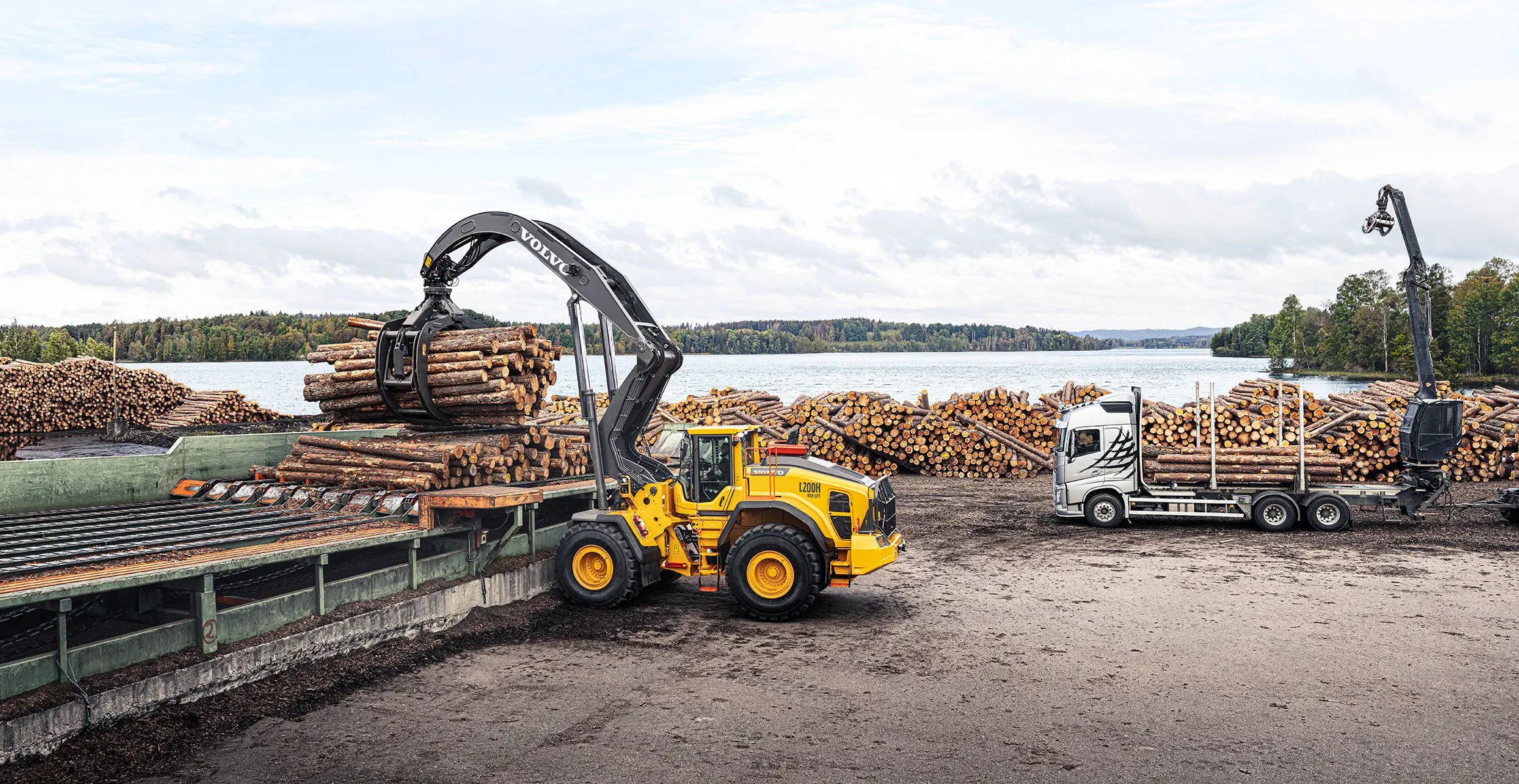

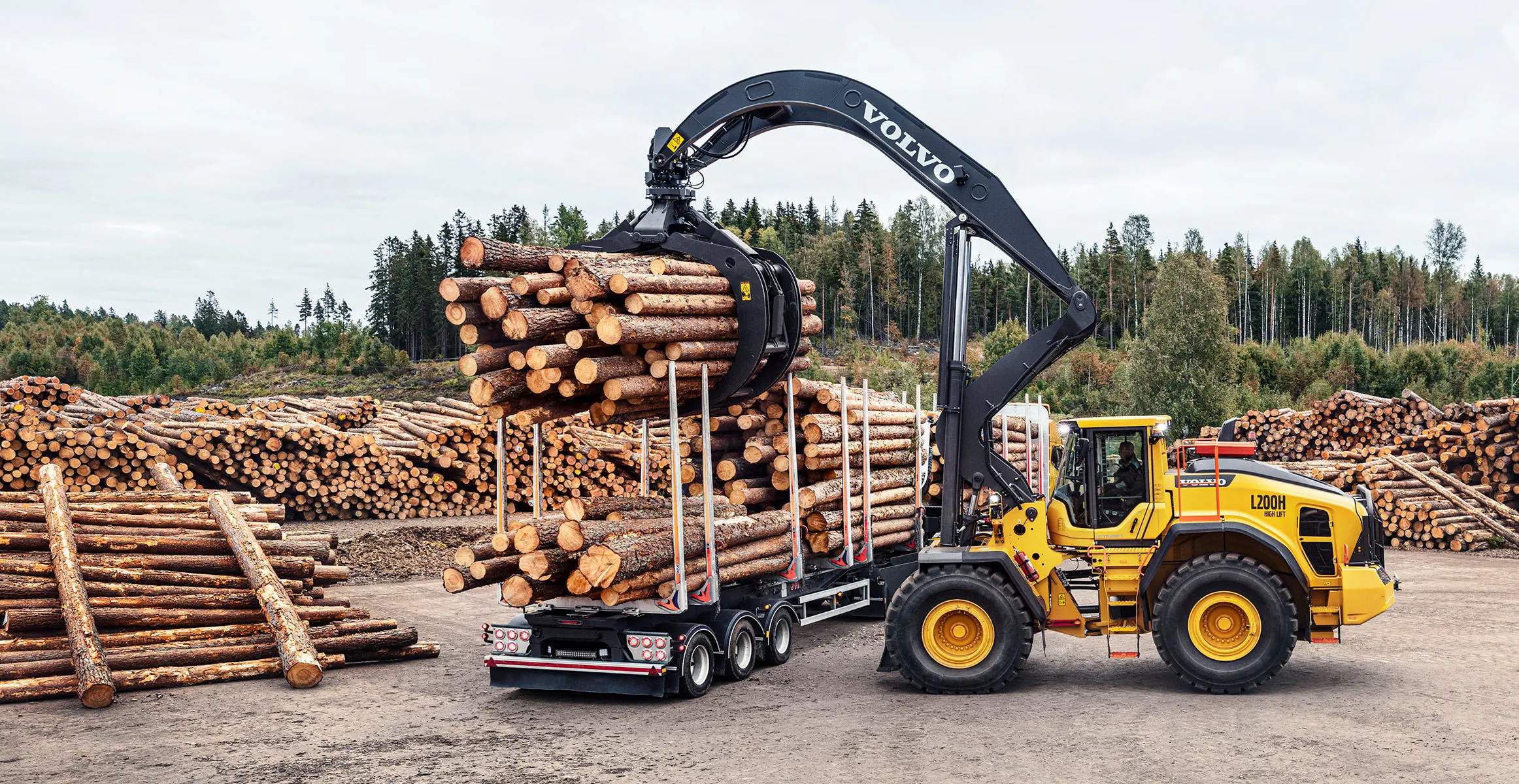

As the first manufacturer to offer a high-lift wheel loader back in 1974, we are delighted to present the new L200H High Lift. This is a machine which builds on the success of its predecessor, the L180H High Lift, to boost productivity and lower operating costs in logging applications.
Operating Weight | |
---|---|
Imperial Unit | lbs |
Imperial Value | 81370 |
Metric Unit | kg |
Metric Value | 36910 |
Unicode | e605 |
Driveline | |
---|---|
Engine Manufacturer | Volvo |
Engine Model | D13J |
Emissions Technology | Cooled Exhaust Gas Recirculation |
After Treatment System | Diesel Particulate Filter |
Aspiration | Var. Geometry Turbo |
Displacement | 781 Inches³ (12.8 ltr) |
Rated Speed | 1300 rpm |
Engine Output - Net | 337 hp (251 kW) |
Torque | 1527 lbf / ft (2071 Nm) |
Transmission Type | Powershift |
Traction Control | No |
Tire Size | 875 / 65 R29 |
Service Brake - Type | Wet Disc |
Dimensions | |
Wheelbase | 11 ft 8 in (3550 mm) |
Length With Bucket On Ground | 32 ft 1 in (9770 mm) |
Ground Clearance | 21 inches (540 mm) |
Width Over Tires - Std | 10 ft 8 in (3260 mm) |
Bucket Type | Grapple |
Bucket Width | 10 ft 7 in (3220 mm) |
Full Lift Dump Height | 18 ft 5 in (5620 mm) |
Full Lift Reach | 8 ft 7 in (2610 mm) |
Loader - Geometry | Log Grapple |
Height - Pivot Pin | 29 ft 9 in (9070 mm) |
Height - Maximum | 31 ft 7 in (9630 mm) |
Turn Radius Over Bucket - Std. | 24 ft 3 in (7390 mm) |
Capacities | |
Fuel Tank | 96.7 gallons (US) (366 ltr) |
Heaped Capactiy | 5.6 yd³ (4.3 m³) |
Performance | |
Full Turn Tipping Load | 23240 lbs (10540 kg) |
Ride Control System | Yes |
Oscillation - Rear Axle | 26 ° |
Load Sensing | Yes |
Weights | |
Operating Weight | 81370 lbs (36910 kg) |
