SWING INTO ACTION

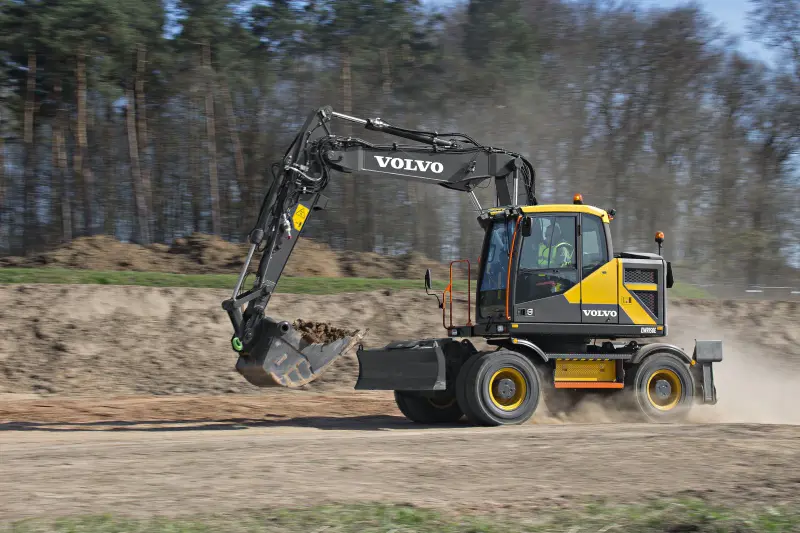

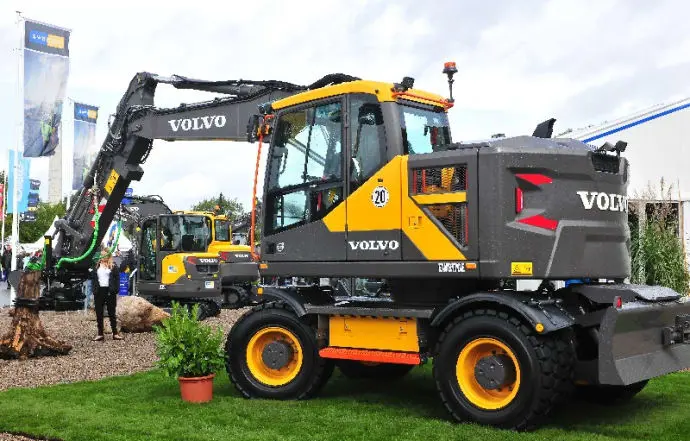

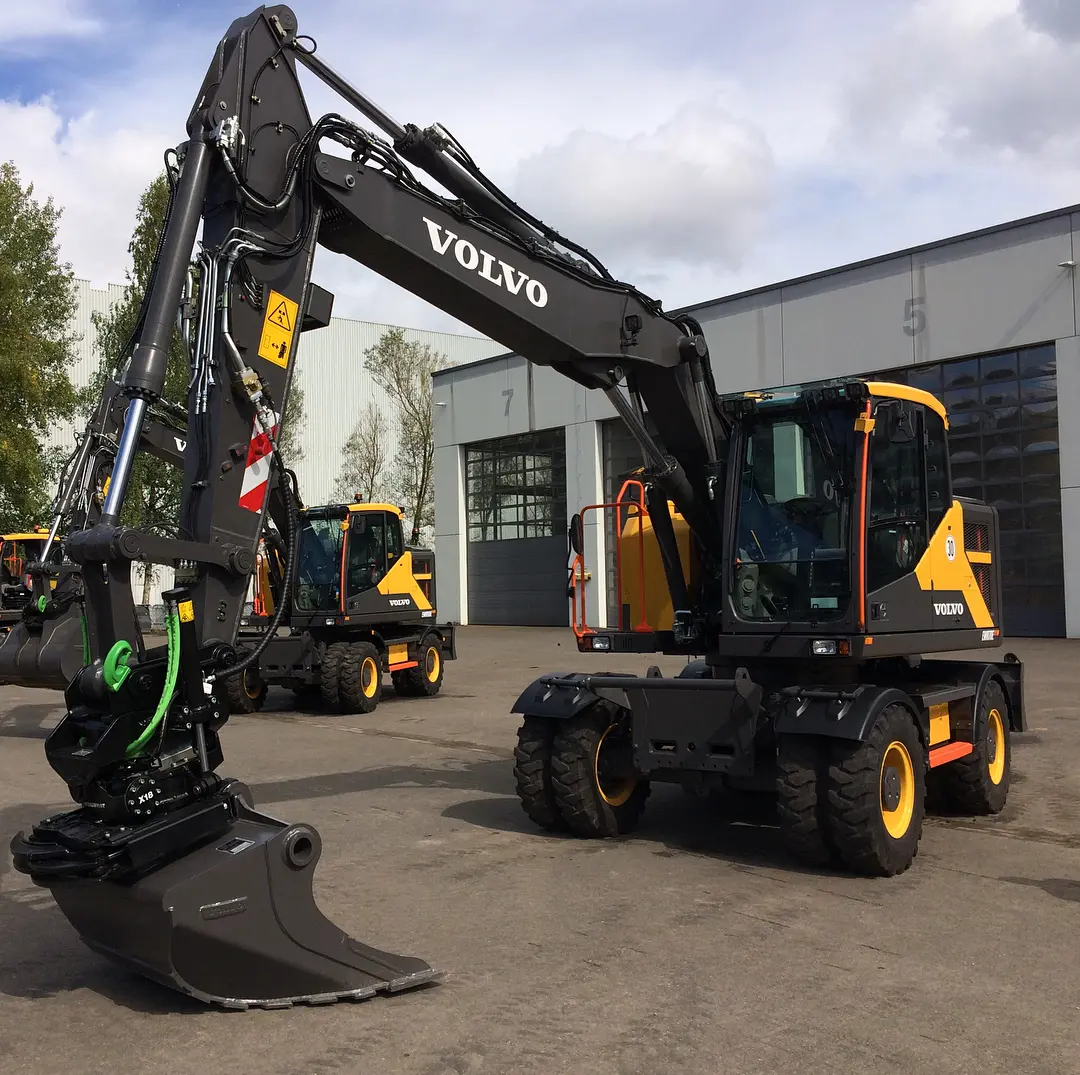

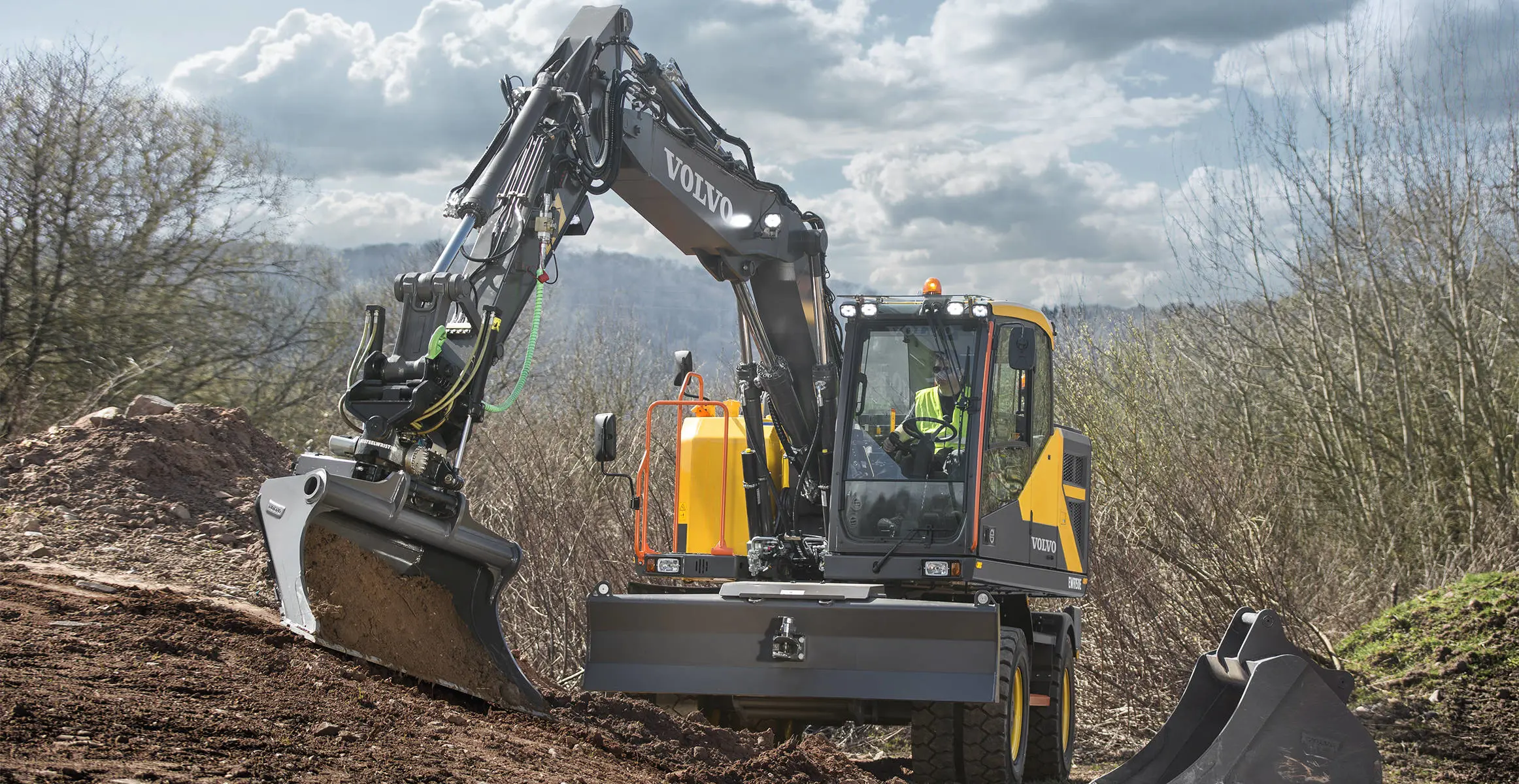

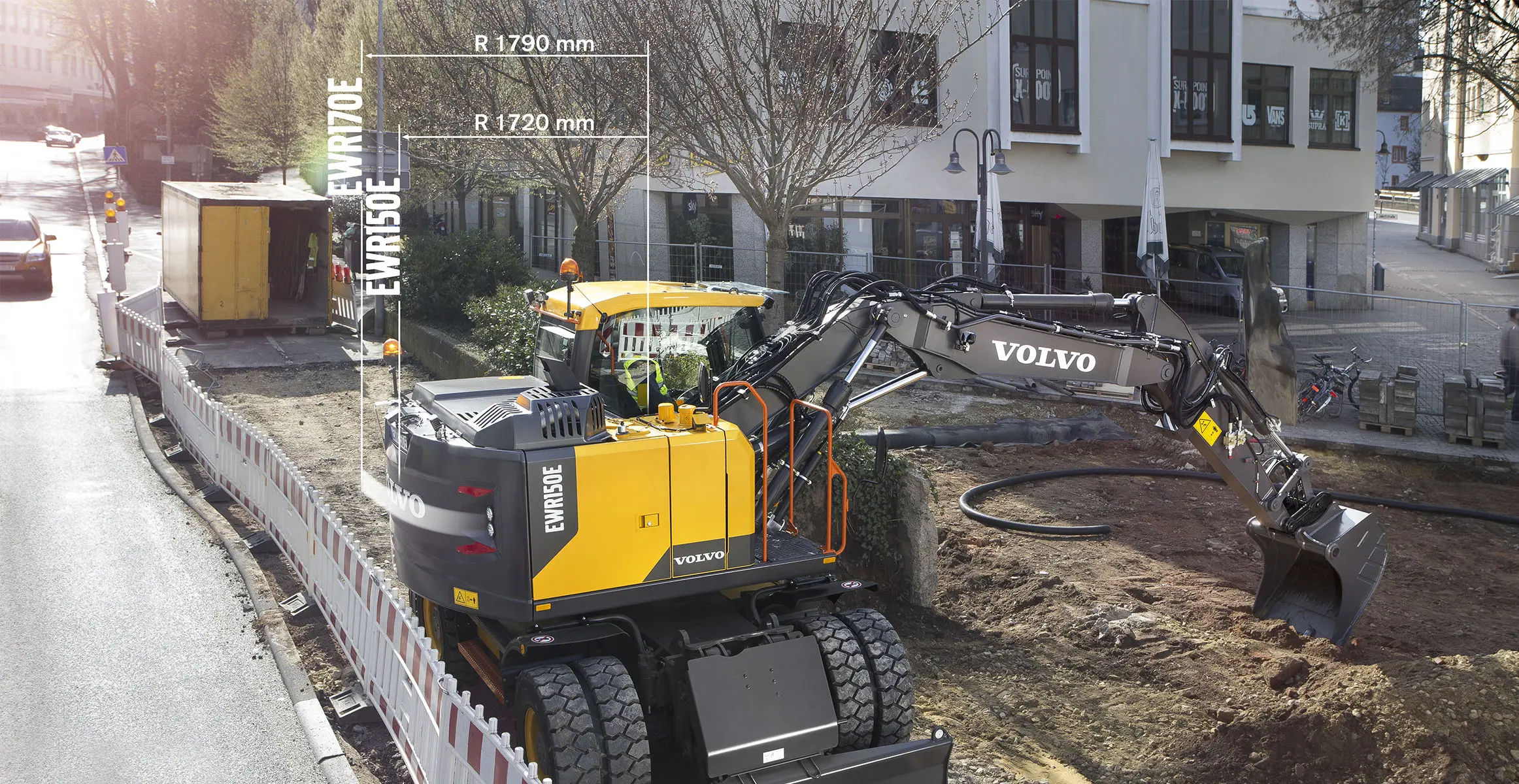

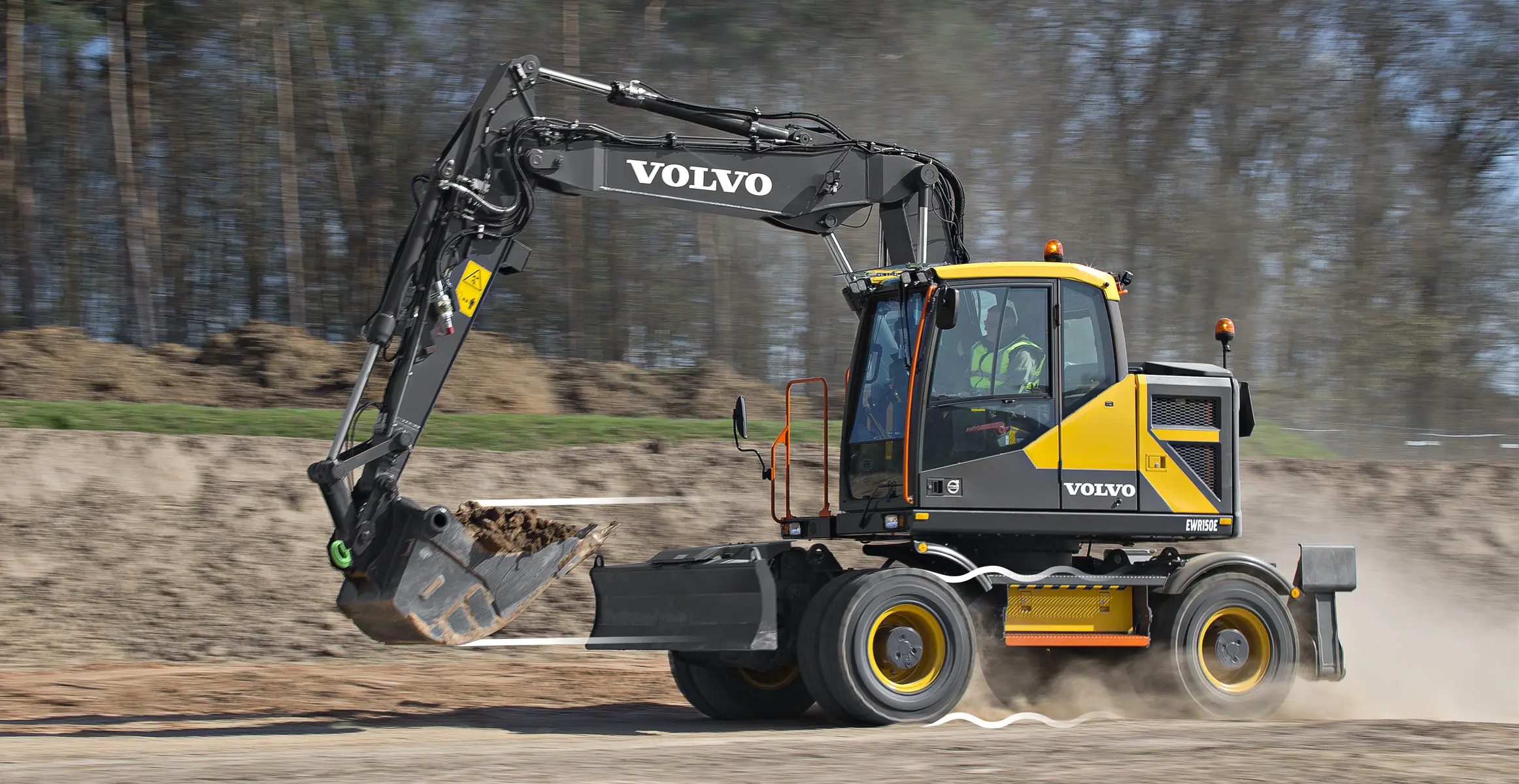

Built with our customers for our customers, the new Volvo EWR170E features one of the shortest tail swings on the market. Equipped with the latest features, powerful engine and intelligent technology, the EWR170E operates with efficiency and control, for ultimate productivity.
Engine Output - Gross | |
---|---|
Imperial Unit | hp |
Imperial Value | 154 |
Metric Unit | kW |
Metric Value | 115 |
Unicode | e60b |
Reference Capacity | |
Imperial Unit | yd 3 |
Imperial Value | 0.92 |
Metric Unit | m 3 |
Metric Value | 0.7 |
Unicode | e60f |
Operating Weight | |
Imperial Unit | lbs |
Imperial Value | 42329 |
Metric Unit | kg |
Metric Value | 19200 |
Unicode | e605 |
Telematics | |
---|---|
Telematics Available | Yes |
Driveline | |
Engine Manufacturer | Volvo |
Engine Model | D4J |
Displacement | 246.5 Inches³ (4.04 ltr) |
Rated Speed | 2000 rpm |
Engine Output - Net | 150 hp (112 kW) |
Engine Output - Gross | 154 hp (115 kW) |
Standard Number Of Tires | 8 |
Tire Size - Standard | 10.00-20 |
Dimensions | |
Overall Width | 8 ft 4 in (2540 mm) |
Overall Width Stabilizers Down | 13 ft 1 in (3990 mm) |
Wheelbase | 8 ft 6 in (2600 mm) |
Ground Level Reach | 29 ft 6 in (9030 mm) |
Max Dig Height | 32 ft 10 in (10010 mm) |
Dump Clearance Height | 22 ft 9 in (6930 mm) |
Dig Depth | 18 ft 6 in (5640 mm) |
Capacities | |
Fuel Tank | 52.8 gallons (US) (200 ltr) |
Reference Capacity | 0.92 yd³ (0.7 m³) |
Performance | |
Swing Speed | 9 rpm |
Bucket Breakout - Articulated Boom | 24392 lbf (108.5 kN) |
Dipper Tearout - Boost, Articulated Boom | 14275 lbf (63.5 kN) |
Total Flow - Main Pumps | 73 gallons (US) / min (275 lt/min) |
Weights | |
Operating Weight | 42329 lbs (19200 kg) |
